Description

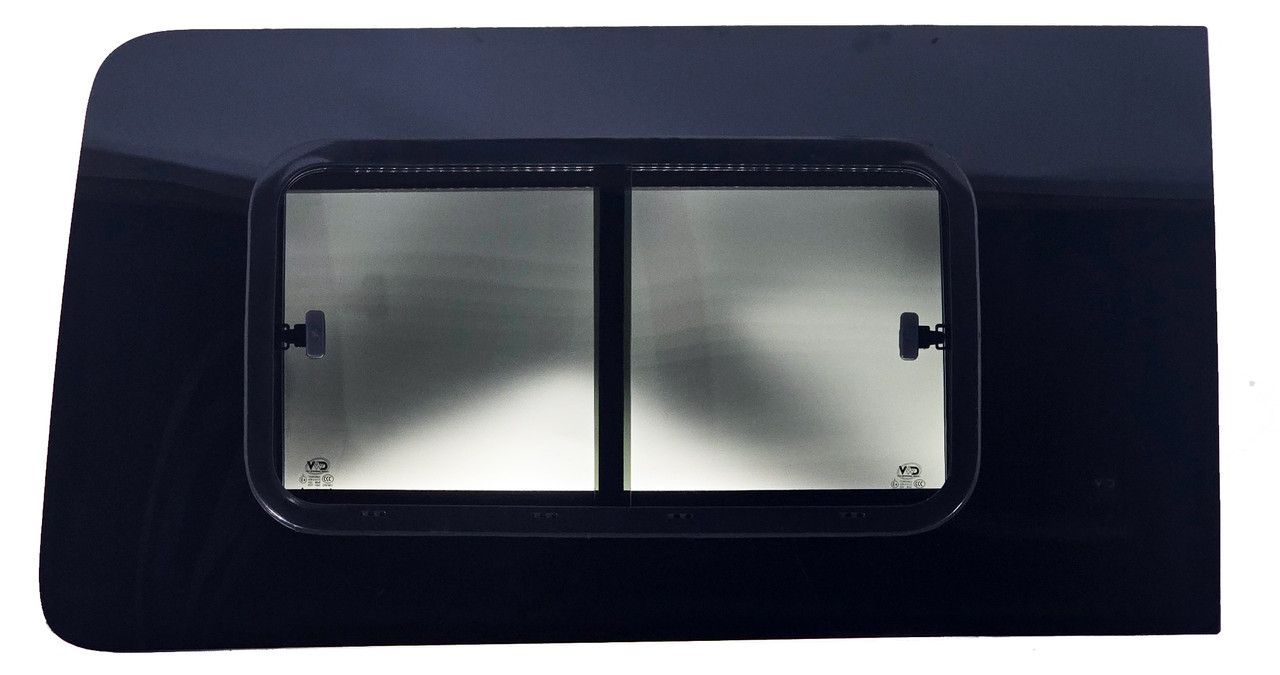

Ford Transit Driver Side Forward Double Sliding Window | VWD TL201-DS (2015-2026 Medium & High Roof)
The VWD TL201-DS is the Ford Transit driver side forward window that gives you real airflow control where heat and condensation build up. Both panels slide independently so you can open the front, rear, or both for maximum ventilation. You also get solar privacy glass (12% UV, approx 88% UV blocking), an integrated bug screen, and an integrated retractable shade. Urethane bonded install for a sealed, factory-style finish.
Key Features
- Double sliding vent design. Front panel opens. Rear panel opens. Both can open
- Solar privacy glass (12% UV) with approx 88% UV blocking
- Driver side forward position for Ford Transit
- Integrated bug screen for ventilation without insects
- Integrated retractable shade for privacy and light control
- Urethane bonded installation
- 1 year warranty
Fitment
- Vehicle: Ford Transit Van
- Years: 2015-2026
- Roof: Medium Roof or High Roof
- Wheelbase: 130 in, 148 in, 148 in Extended
- Position: Driver Side Forward
Technical Specifications
| Model | TL201-DS |
| Window Type | Double Sliding Vent Window |
| Overall Dimensions | 53.82 in x 29.17 in (1367 mm x 741 mm) |
| Slider Opening | 13.0 in x 15.9 in (330 mm x 403 mm) |
| Viewable Glass | 31.1 in x 15.9 in (790 mm x 403 mm) |
| Internal Frame Depth | 2 9/16 in (65 mm) |
| Glass | Solar Privacy Glass (12% UV), approx 88% UV blocking |
| Screen | Integrated bug screen |
| Shade | Integrated retractable shade |
| Installation | Urethane Bonded |
| Warranty | 1 Year |
Installation
This is a urethane bonded window. Prep the cutout, dry-fit, clean, prime, and set with automotive glass urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer specs.
Ford Transit TL201 Installation Overview
Installing the TL201 driver-side forward windows requires removing a portion of the inner stamped sheet metal on Ford Transit Medium Roof and High Roof vans.
This installation overview applies to:
- TL201-AW – Premium Awning Window
- TL201-F – Fixed Glass Window
- TL201-SE – SE-Series Sliding Window
The general process is:
- Identify and carefully cut the required inner sheet metal from inside the van.
- File and deburr the cut edges to remove any sharp or raised areas.
- Prime or protect all freshly exposed steel.
- Install Trim-Lok edge molding over the finished sheet-metal edge.
- Dry-fit the window and verify clearance before applying automotive urethane.
- Urethane-bond the window in place and allow the adhesive to fully cure.
Important: Always verify the actual window and vehicle before cutting. The illustrated cut lines in our guide are for visual reference only, not an exact cutting template.
FAQ
What vehicles does this window fit?
Ford Transit 2015-2026, Medium Roof or High Roof, wheelbase 130 in, 148 in, 148 in Extended, driver side forward location.
What are the measurements?
Overall: 53.82 in x 29.17 in (1367 mm x 741 mm). Slider opening: 13.0 in x 15.9 in (330 mm x 403 mm). Viewable glass: 31.1 in x 15.9 in (790 mm x 403 mm).
What tint is used?
Solar privacy glass with a 12% UV rating and approximately 88% UV blocking.
How is it installed?
Urethane-bonded installation.
Ford Transit Van
| Model | Transit Van |
|---|---|
| Wheelbase | 130", 148", 148" Extended |
| Model Years | 2015–2026 |
| Roof Height | Medium Roof or High Roof |
Compatible with Ford Transit vans within the configurations listed above.
