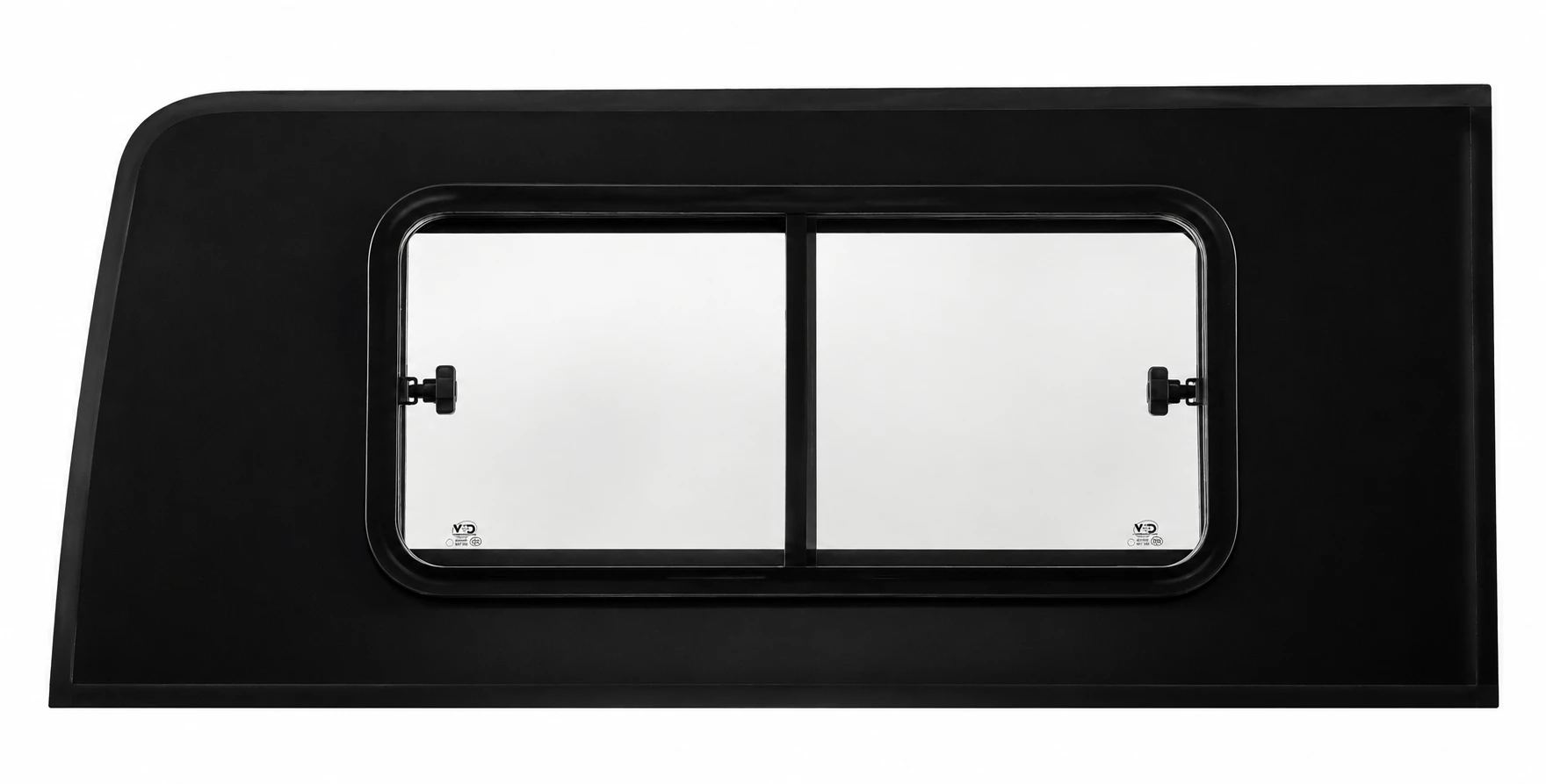

Double Sliding Van Window for Sprinter Passenger Side Rear Quarter | VWD SR104-DS (2007-2026)

Bring maximum ventilation flexibility to the rear living or sleeping area of your Sprinter with the VWD SR104-DS Double-Sliding Van Window. Two independently sliding glass panels let you open either side of the window or both sides at once, giving you far more control over airflow than a conventional single-slider design.

The SR104-DS combines versatile ventilation with an integrated bug screen, integrated thermal privacy shade, 17% solar privacy glass, improved secure latching, and a clean all-glass exterior appearance. The sliding opening measures up to 14-1/2" W x 15-7/8" H (368.3 mm x 403.2 mm), making it an excellent ventilation upgrade for the rear living and sleeping area of a Sprinter camper van conversion.

Key Features

• Dual sliding panels for maximum ventilation control
• Open either sliding panel independently or open both sides simultaneously
• Opening up to 14-1/2" W x 15-7/8" H (368.3 mm x 403.2 mm)
• Integrated bug screen for fresh airflow without insects
• Integrated thermal privacy shade for privacy, light control, and interior comfort
• 17% solar privacy glass for privacy, glare reduction, and UV control
• Improved latching for secure daily use
• Clean all-glass exterior appearance
• Urethane-bonded installation for an OEM-style, weather-sealed finish
• Manufactured in China
• 1-year warranty

Why Choose a Double-Sliding Van Window?

Unlike a traditional slider with only one movable glass panel, the SR104-DS incorporates two independently operating sliding panels. This gives you more control over where fresh air enters your van and allows you to adapt ventilation to your interior layout, sleeping position, weather conditions, and airflow needs.

• Open the front sliding panel independently
• Open the rear sliding panel independently
• Open both panels simultaneously
• Greater ventilation flexibility than a conventional single slider
• Improved cross-flow ventilation throughout the van
• Excellent airflow for rear sleeping and living areas
• Ideal for camper van and adventure van conversions

Fitment

• Vehicle: Mercedes-Benz Sprinter Van
• Model Years: 2007-2026
• Wheelbase: 144"
• Roof Height: Low Roof or High Roof
• Window Position: Passenger Side Rear Quarter

Technical Specifications

Maximum Ventilation Control

The double-slider configuration gives you more usable ventilation options than a traditional single-slider window. Open one side when you want directional airflow or open both sliding panels to maximize fresh-air circulation. This flexibility is especially useful in camper van layouts where beds, cabinetry, seating, or other interior components can influence airflow and window access.

Integrated Bug Screen & Thermal Privacy Shade

The SR104-DS includes both an integrated bug screen and an integrated thermal privacy shade. The screen allows you to enjoy fresh air while helping keep insects outside, while the thermal privacy shade provides additional privacy, light control, and comfort when camping or sleeping in the van.

Installation

The SR104-DS is a urethane-bonded van window. Confirm all measurements and dry-fit the window before cutting or applying urethane. After cutting the opening, deburr and protect exposed metal edges. Clean and prime according to the requirements of your automotive urethane system. Set the window, properly support and secure it during curing, and allow the urethane to reach its required safe-drive-away cure time before driving the vehicle.

FAQ

What van does the SR104-DS fit?

The VWD SR104-DS is designed for Mercedes-Benz Sprinter vans from 2007-2026 with a 144" wheelbase, Low Roof or High Roof. It installs in the passenger side rear quarter position.

What are the measurements?

Overall size: 1631 mm x 705 mm (64.21 in x 27.76 in). Sliding opening: up to 14-1/2" W x 15-7/8" H (368.3 mm x 403.2 mm).

What makes this different from a standard slider?

The SR104-DS has two independently sliding glass panels instead of a single movable panel. You can open the front side, rear side, or both sides simultaneously for greater ventilation flexibility and airflow control.

Does it include a bug screen?

Yes. The SR104-DS includes an integrated bug screen for fresh airflow while helping keep insects outside the van.

Does it include a privacy shade?

Yes. An integrated thermal privacy shade provides privacy, light control, and additional interior comfort.

What type of glass is used?

The SR104-DS features 17% solar privacy glass for privacy, glare reduction, and UV control while maintaining a clean all-glass exterior appearance.

How is it installed?

The SR104-DS uses a urethane-bonded installation. Always dry-fit before installation, prepare and protect cut metal edges, clean and prime according to your urethane system requirements, set and secure the window, and allow the urethane to fully cure according to the manufacturer's specifications before driving.
