Ford Transit TR201 Sliding Door Window Installation Guide
Published by VWD on Oct 1st 2026
Ford Transit Passenger Side Sliding Door Window Installation Guide | TR201 Series
Step-by-step Ford Transit TR201 installation guide covering the TR201-AW, TR201-F, and TR201-SE passenger-side sliding door windows for 2015–2026 Ford Transit Medium Roof and High Roof vans.
Table of Contents
What Is the Ford Transit TR201 Window Position?
The TR201 window position is the passenger-side sliding door of the Ford Transit van.
The TR201 Series is designed for compatible 2015–2026 Ford Transit Medium Roof and High Roof vans, including 130", 148", and 148" Extended wheelbases.
Compatible TR201 Window Models
This cutout and preparation guide applies to the following Van Windows Direct TR201-Series windows:
- TR201-AW – Premium Awning Window
- TR201-F – Fixed Glass Window
- TR201-SE – SE-Series Sliding Window
The general cutout and preparation concept is shared across the TR201 Series, although the finished glass appearance, interior framing, ventilation system, and individual product features vary by model.
Current TR201 product specifications list an overall window size of approximately 1367 mm x 741 mm (53.86" x 29.17").
Always verify the exact window being installed before making any permanent modification to the van.
Tools and Materials Needed
- One-handed reciprocating saw, pneumatic air saw, or compact body saw
- Thin-metal automotive cutting blade
- Metal file or deburring tool
- Safety glasses
- Work gloves
- Vacuum
- Clean shop cloth
- Automotive rattle-can primer or suitable urethane primer
- Trim-Lok edge molding
- Automotive glass urethane
- Masking or window-support tape
Ford Transit TR201 Sliding Door Cutout and Preparation Overview

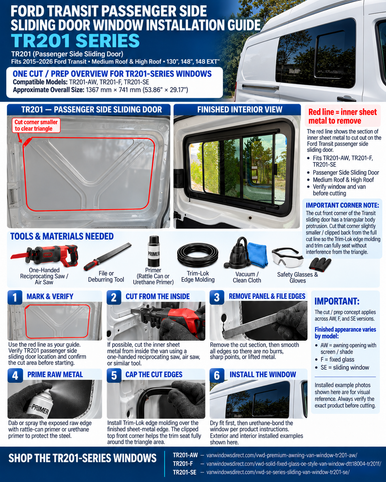

The red cut line shown in the illustrated TR201 installation guide identifies the general section of inner stamped sheet metal that must be removed from the Ford Transit passenger side sliding door.
The objective is to provide sufficient clearance for the TR201 window and finished edge molding while retaining the surrounding door structure.
After cutting, the exposed sheet-metal edge should be:
- Filed and deburred
- Protected against corrosion
- Finished with Trim-Lok edge molding
- Cleaned thoroughly
- Dry-fit with the actual window before urethane is applied
Important: Ford Transit Sliding Door Front Corner Triangle
Cut the Upper Front Corner Slightly Smaller
The Ford Transit passenger side sliding door has a triangular stamped protrusion in the upper front corner of the door structure.
This raised triangular body feature can interfere with the finished trim or edge molding if the cut follows the full perimeter too closely in this specific corner.
To avoid interference, the upper front corner should be cut slightly smaller and clipped back from the normal cut line so the Trim-Lok edge molding and finished trim can fully seat without contacting the triangular protrusion.
Do not simply follow the full perimeter line through this corner. Verify the actual door, test the trim position, and provide sufficient clearance around the triangular stamped area before completing the cut.
Step-by-Step Ford Transit TR201 Window Installation
Step 1 — Verify the Passenger Side Sliding Door
Confirm you are working on the Ford Transit passenger-side sliding door and that the window is the correct TR201 model.
Inspect the inside of the door for wiring, door hardware, brackets, locking components, or anything else near the cutting area.
Step 2 — Mark the Inner Sheet Metal
Use the illustrated red line as a reference for the general inner sheet-metal area to remove.
Before making the first cut, verify the location against the actual TR201 window.
Step 3 — Adjust the Upper Front Corner
Pay special attention to the upper front corner of the sliding door opening.
Because of the Transit door's triangular stamped body protrusion, cut this corner slightly smaller than the general perimeter line.
Clipping this corner back provides additional clearance so the Trim-Lok edge molding and finished trim can fully seat without the triangular body feature pushing them outward.
Test the trim position before removing additional material.
Step 4 — Cut From Inside the Sliding Door
Whenever practical, cut from inside the van.
Suitable tools include:
- One-handed reciprocating saw
- Pneumatic air saw
- Compact automotive body saw
Use a blade designed for thin automotive sheet metal and work slowly.
Avoid pushing the saw blade unnecessarily deep into the door cavity because the exterior door skin may be relatively close behind portions of the inner stamped panel.
Step 5 — Remove the Cut Sheet-Metal Section
Once you've cut the perimeter, carefully remove the unwanted section.
Inspect the opening for:
- Remaining metal tabs
- Sharp corners
- Saw burrs
- Raised edges
- Irregular cuts
- Interference near the upper front triangular body feature
Step 6 — File and Deburr the Opening
Use a metal file or deburring tool around the complete opening.
Remove any sharp points, lifted areas, burrs, or high spots.
A smooth edge makes installation of the Trim-Lok molding easier and reduces the chance of the cut sheet metal interfering with the window.
Step 7 — Protect the Raw Metal
Freshly cut automotive steel should not remain exposed.
Apply suitable corrosion protection to the raw metal edge.
Suitable options may include:
- Automotive rattle-can primer
- Automotive touch-up primer
- Urethane-compatible primer where appropriate
A controlled light application to the freshly exposed steel is generally sufficient.
Step 8 — Install Trim-Lok Edge Molding
Once the cut metal is smooth and protected, install Trim-Lok edge molding around the finished opening.
Trim-Lok helps:
- Cover sharp metal edges
- Protect the finished cut
- Improve the interior appearance
- Conceal minor cutting irregularities
- Create a cleaner professional finish
Pay particular attention to the upper front corner near the triangular protrusion.
The molding should sit fully against the finished edge without being pushed outward or distorted by the stamped body feature.
Step 9 — Clean the Sliding Door Cavity
Vacuum all loose metal fragments from the door and surrounding area.
Steel shavings left inside the sliding door can eventually rust and may stain or damage nearby surfaces.
Step 10 — Dry-Fit the TR201 Window
Before opening the urethane, place the actual TR201 window into the prepared opening.
Inspect the complete perimeter for clearance.
The window should sit naturally in its intended position without being forced against remaining sheet metal or edge molding.
If interference exists:
- Remove the window
- Identify the contact point
- Carefully adjust the opening
- File the newly cut area
- Re-protect exposed steel
- Reinstall the edge molding if necessary
- Dry-fit again
Step 11 — Prepare the Urethane Bond
TR201-Series windows use a urethane-bonded installation.
Prepare the vehicle and glass bonding surfaces according to the requirements of the automotive urethane system being used.
This may include:
- Cleaning the bonding surfaces
- Applying required body primer
- Applying required glass primer
- Allowing the proper primer flash time
Step 12 — Apply Automotive Urethane
Apply a continuous automotive glass urethane bead around the required bonding perimeter.
Avoid gaps, extremely thin sections, or inconsistent bead height.
Automotive glass urethane is considerably thicker than household caulk, so a high-ratio urethane gun is generally recommended.
Step 13 — Install the TR201 Window
Carefully position the window into the prepared passenger side sliding door opening.
Apply even pressure around the perimeter so the urethane bead makes consistent contact.
Tape or support the window during the cure period as required by the adhesive manufacturer.
Do not drive the vehicle until the urethane has reached the manufacturer's specified safe-drive-away time.
TR201-AW vs TR201-F vs TR201-SE
TR201-AW Premium Awning Window
The TR201-AW is the premium ventilating option for the Ford Transit passenger side sliding door.
It features an outward-opening awning section, integrated retractable bug screen, pleated shade, privacy glass, and a finished interior frame.
Shop TR201-AW Premium Awning Window
TR201-F Fixed Glass Window
The TR201-F provides a simple fixed-glass configuration without sliders, awning hardware, or other opening components.
It is a strong option when visibility, privacy glass, natural light, and an OE-style exterior appearance are the primary goals.
Shop TR201-F Fixed Glass Window
TR201-SE Sliding Window
The TR201-SE adds sliding ventilation to the Ford Transit passenger side sliding door while maintaining a clean Transit-specific exterior appearance.
Why Proper TR201 Sliding Door Preparation Matters
A Ford Transit sliding door window installation is not simply about cutting an opening large enough for the glass.
The window, edge molding, and surrounding body structure must all have adequate clearance.
Improper preparation can contribute to:
- Window interference
- Trim interference at the front triangular body protrusion
- Trim-Lok that will not fully seat
- Uneven window position
- Improper urethane contact
- Sharp exposed metal
- Corrosion
- Poor cosmetic appearance
Taking additional time to properly shape the upper front corner, file the opening, protect the steel, install edge molding, clean the door cavity, and dry-fit the actual window can greatly improve the finished installation.
Common Ford Transit TR201 Installation Mistakes
Following the Full Cut Line Through the Upper Front Corner
The Transit sliding door has a triangular stamped protrusion in this area. Leave additional clearance by clipping the corner slightly smaller so the finished trim can sit correctly.
Removing Too Much Metal
Only remove what is required for proper clearance. You can always refine the opening after a dry fit.
Leaving Burrs Around the Opening
Raised sheet metal can interfere with the Trim-Lok and window. File the complete cut perimeter.
Leaving Bare Steel Exposed
Freshly cut steel should receive suitable corrosion protection.
Skipping the Dry Fit
Always verify the actual TR201 window fits correctly before applying urethane.
Leaving Metal Shavings in the Sliding Door
Vacuum the door cavity and surrounding surfaces thoroughly after cutting.
Shop Ford Transit TR201-Series Windows
TR201-AW Premium Awning Window
Shop TR201-AW
TR201-F Fixed Glass Window
Shop TR201-F
TR201-SE Sliding Window
Shop TR201-SE
Van Window Installation Instructions
View Van Window Installation Instructions
Ford Transit TL201 Driver Side Installation Guide
View the Matching Driver Side TL201 Guide
Ford Transit TL215 & TR215 Rear Cargo Door Installation Guide
View Rear Cargo Door Installation Guide
Frequently Asked Questions
What does TR201 fit?
TR201 fits the passenger side sliding door on compatible 2015–2026 Ford Transit Medium Roof and High Roof vans.
Which TR201 window models are available?
Van Windows Direct offers the TR201-AW Premium Awning Window, TR201-F Fixed Glass Window, and TR201-SE Sliding Window.
What size is a TR201 window?
Current TR201 product specifications list an overall window size of approximately 1367 mm x 741 mm (53.86" x 29.17").
Why does the upper front corner need special attention?
The Ford Transit passenger side sliding door has a triangular stamped body protrusion near the upper front corner. If the opening is cut too closely around this area, the Trim-Lok or finished interior trim may contact the protrusion and may not fully seat.
How should the triangular corner be cut?
Cut the upper front corner slightly smaller and clip it back from the normal cut line. This provides additional clearance for the edge molding and trim around the triangular stamped section.
Should I cut the opening from inside the van?
When practical, working from inside the van provides better visibility of the stamped inner structure and helps reduce the chance of accidentally damaging the exterior body skin.
Should freshly cut steel be primed?
Yes. Freshly exposed steel should be protected with an appropriate automotive primer or corrosion-protection coating.
Should Trim-Lok edge molding be installed?
Trim-Lok helps cover the cut sheet-metal edge and creates a cleaner finished opening. Make sure it fully seats around the special upper front corner area.
Should the TR201 window be dry-fitted before applying urethane?
Yes. Always verify window position, edge clearance, and Trim-Lok fit before applying automotive urethane.
What adhesive is used for TR201 windows?
TR201-Series windows use a urethane-bonded installation with suitable automotive glass urethane.
Final Ford Transit TR201 Installation Notes
A clean TR201 installation depends on careful preparation of the Ford Transit passenger side sliding door.
Carefully cutting the opening, allowing clearance around the unique upper front triangular body protrusion, smoothing the metal edges, protecting exposed steel, installing Trim-Lok edge molding, cleaning the door cavity, and dry-fitting the window before urethane installation all contribute to a cleaner and more professional result.
Whether you are installing the TR201-AW, TR201-F, or TR201-SE, always verify the actual van and exact window before making permanent cuts.
