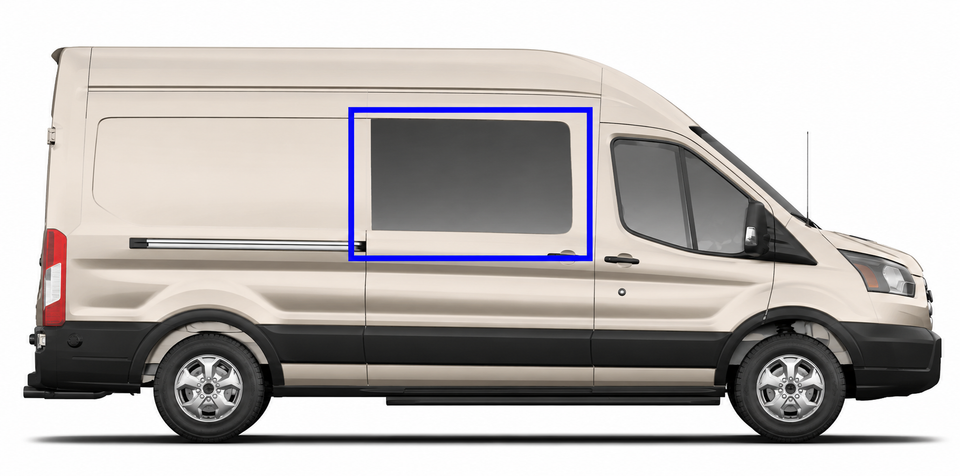

Transit Passenger Side Sliding Door Fixed Glass Window | VWD TR201-F
Factory look. Solid fixed glass. Direct-fit for the Ford Transit passenger side sliding door. Grey solar privacy glass for a clean exterior and strong interior visibility.
Key Features
- Solid fixed glass OE-style window
- Position: passenger side sliding door
- Grey solar privacy glass
- 12% UV filter rating helps reduce heat and UV exposure
- Tempered automotive safety glass (DOT/SAE)
- Urethane-bonded installation for a sealed, factory-style finish
- Manufactured in China
- Usually ships in 5 days or less
- 1-year warranty
Fitment
- Vehicle: Ford Transit Van
- Window position: Passenger Side Sliding Door
- Model years: 2015–2026
- Wheelbase: 130", 148", 148" Extended
- Roof height: Medium Roof or High Roof
Technical Specifications
| SKU | TR201-F |
| Window Type | Solid Fixed Glass OE Style Van Window |
| Vehicle | Ford Transit Van |
| Window Position | Passenger Side Sliding Door |
| Glass | Grey Solar Privacy Glass |
| UV Filter Rating | 12% |
| Safety | Tempered Automotive Safety Glass (DOT/SAE) |
| Installation | Urethane Bonded |
| Manufactured In | China |
| Warranty | 1 Year |
Measurements
Overall Dimensions: 1367mm x 741mm (53.86" W x 29.17" H)
Installation
This is a urethane-bonded window. Dry-fit first. Prep the opening, treat the cut edge, clean, and prime per urethane specs. Set the window with automotive urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
Ford Transit TR201 Installation Overview
Installing the TR201 passenger-side sliding door windows requires removing a portion of the inner stamped sheet metal on Ford Transit Medium Roof and High Roof vans.
This installation overview applies to:
- TR201-AW – Premium Awning Window
- TR201-F – Fixed Glass Window
- TR201-SE – SE-Series Sliding Window
The general process is:
- Identify and carefully cut the required inner sheet metal from inside the sliding door.
- Pay special attention to the upper front corner where the Transit door has a triangular stamped protrusion.
- Cut that upper front corner slightly smaller so the Trim-Lok edge molding and finished trim can fully seat without interference.
- File and deburr the cut edges to remove any sharp or raised areas.
- Prime or protect all freshly exposed steel.
- Install Trim-Lok edge molding over the finished sheet-metal edge.
- Dry-fit the window and verify clearance before applying automotive urethane.
- Urethane-bond the window in place and allow the adhesive to fully cure.
Important: Always verify the actual window and vehicle before cutting. The illustrated cut lines in our guide are for visual reference, not an exact cutting template.
FAQ
What vehicles and positions does TR201-F fit?
Ford Transit van. Position: passenger-side sliding door. Fitment listed for 2015–2026 Transit vans with medium roof or high roof and 130", 148", or 148" extended wheelbase.
What are the measurements?
Overall dimensions: 1367 mm x 741 mm (53.86 in x 29.17 in).
What glass and UV rating does it use?
Grey solar privacy glass with a 12% UV filter rating.
Is the glass safety-rated?
Yes. Tempered automotive safety glass built to DOT/SAE standards.
How is it installed?
Urethane-bonded installation using automotive glass urethane. Prep, prime per urethane specs, set the glass, and support during cure.
Ford Transit Van
| Model | Transit Van |
|---|---|
| Wheelbase | 130", 148", 148" Extended |
| Model Years | 2015–2026 |
| Roof Height | Medium Roof or High Roof |
Compatible with Ford Transit vans within the configurations listed above.
