Description

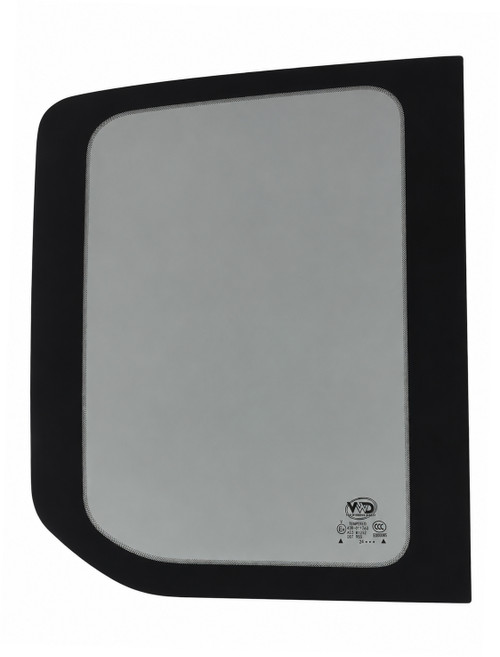

Transit Driver Side Rear Cargo Door Fixed Glass Window | VWD TL215-F
Factory look. Solid fixed glass. Direct-fit for the Ford Transit driver's side rear cargo door. Thicker glass for a tougher, quieter build.
Key Features
- Solid fixed glass OE-style window

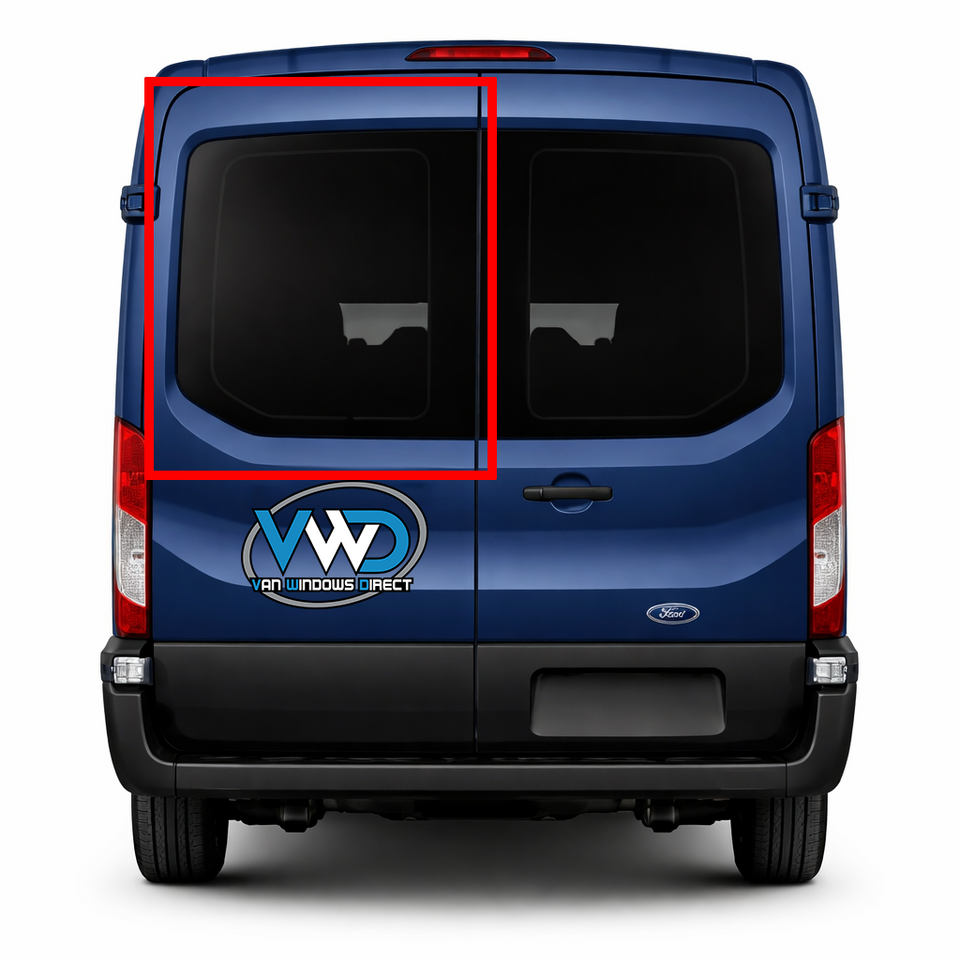

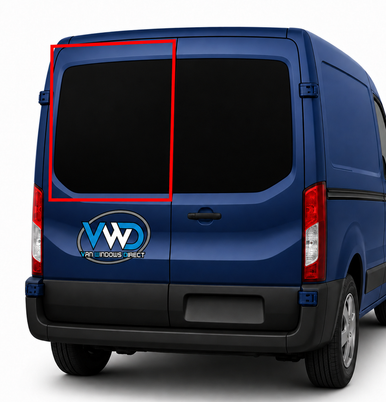

- Position: driver side rear cargo door
- Fitment: Ford Transit medium roof and high roof
- 25% thicker grey solar privacy glass
- 12% visible light transmission for privacy and heat control
- Tempered safety glass (DOT/SAE compliant)
- Urethane-bonded installation for a sealed, factory-style finish
- Manufactured in Turkey/China
- Usually ships in 5 days or less
- 1 year warranty
Fitment
- Vehicle: Ford Transit Van
- Window position: Driver Side Rear Cargo Door
- Model years: 2015–2026
- Wheelbase: 130", 148", 148" Extended
- Roof height: Medium Roof or High Roof
Technical Specifications
| SKU | TL215-F |
| Window Type | Solid Fixed Glass OE Style Van Window |
| Vehicle | Ford Transit Van |
| Window Position | Driver Side Rear Cargo Door |
| Roof Height | Medium Roof or High Roof |
| Glass | 25% Thicker Grey Solar Privacy Glass |
| Visible Light Transmission | 12% |
| Material | Tempered Safety Glass (DOT/SAE) |
| Installation | Urethane Bonded |
| Manufactured In | Turkey/China |
| Warranty | 1 Year |
Measurements
Dimensions: 829mm x 795mm (32.64" H x 31.30" W)
Installation
This is a urethane-bonded window. Dry-fit first. Prep the opening, treat the cut edge, clean, and prime per urethane specs. Set the window with automotive urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
Ford Transit Rear Door Installation Overview
Installing the TL215 and TR215 rear cargo door windows requires removing a portion of the inner stamped sheet metal on Ford Transit Medium Roof and High Roof rear cargo doors.
The general process is:
- Identify and carefully cut the required inner sheet metal from inside the van.
- File and deburr the cut edges to remove sharp or raised areas.
- Prime or protect all freshly exposed steel.
- Install Trim-Lok edge molding over the finished sheet-metal edge.
- Dry-fit the window and verify clearance before applying automotive urethane.
- Urethane-bond the window in place and allow the adhesive to fully cure.
Important: Always verify the actual window and vehicle before cutting. The illustrated cut lines in our guide are for visual reference only, not an exact cutting template.
View Full TL215 & TR215 Installation Guide
Do you want a full-page printout of the illustrated installation guide? View and Print the Full Illustrated Guide
FAQ
What vehicles and positions does TL215-F fit?
Ford Transit van. Position: driver-side rear cargo door. Fitment listed for 2015–2026 Transit vans with medium roof or high roof and 130", 148", or 148" extended wheelbase.
What are the measurements?
Dimensions: 829mm x 795mm (32.64" H x 31.30" W).
What tint and privacy rating does it have?
Grey solar privacy glass with 12% visible light transmission for strong privacy and heat control.
What makes this glass different from standard van windows?
The TL215-F uses 25% thicker tempered safety glass for increased strength and improved insulation.
How is it installed?
Urethane-bonded installation using automotive glass urethane. Prep and prime per urethane specs, set the glass, and support during cure.
Ford Transit Van
| Model | Transit Van |
|---|---|
| Wheelbase | 130", 148", 148" Extended |
| Model Years | 2015–2026 |
| Roof Height | Medium Roof or High Roof |
Compatible with Ford Transit vans within the configurations listed above.
