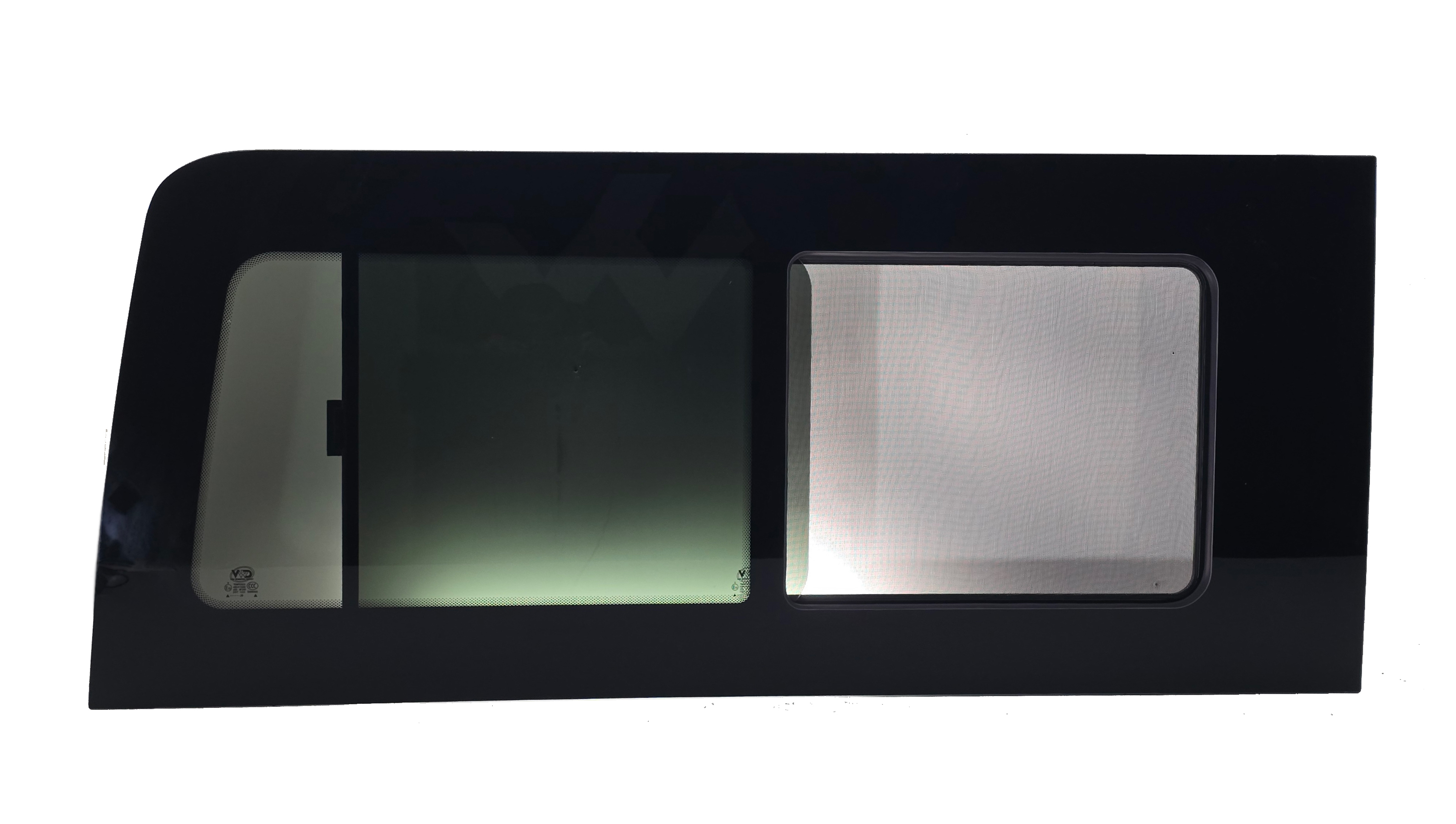

Sprinter Passenger Side Rear Quarter SE-Series Sliding Window | VWD SR104-SE (2007-2026)
The rear quarter is a key location for airflow in a Sprinter build. Positioned just behind the main living space, it helps move air through the van without exposing the sliding door area. The VWD SR104-SE features controlled ventilation, a clean exterior, 17% solar-privacy glass, and an integrated insect screen. Urethane-bonded installation gives you a sealed, factory-style finish.
Key Features
- Direct-fit for Sprinter passenger side rear quarter
- Half-slider ventilation for adjustable airflow
- 17% solar privacy glass for privacy and glare reduction
- Integrated insect screen for bug-free airflow
- Secure spring latch for confident driving
- Urethane-bonded installation (OEM-style seal)
- Manufactured in China
- 1-year warranty
Fitment
- Mercedes-Benz Sprinter 2007-2026
- Wheelbase: 144"
- Low Roof and High Roof
- Position: Passenger Side Rear Quarter
Technical Specifications
| Model | SR104-SE |
| Window Type | Half Slider (SE-Series) |
| Overall Size | 1631 mm x 705 mm (64.21 in x 27.76 in) |
| Opening Size | 552 mm x 451 mm (21.75 in x 17.75 in) |
| Glass | Solar Privacy Glass |
| Tint / UV Rating | 17% |
| Screen | Integrated insect screen |
| Latch | Secure spring latch |
| Window Position | Passenger Side Rear Quarter (144" WB) |
| Installation | Urethane Bonded |
| Manufactured In | China |
| Warranty | 1 Year |
Installation
This is a urethane-bonded window. Prep the cutout, dry-fit, clean, prime, and set with automotive glass urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
Mercedes Sprinter SR104 Installation Overview
Installation of the SR104 passenger side rear quarter windows requires removal of a portion of the inner stamped sheet metal on compatible Mercedes-Benz Sprinter vans.
This installation overview applies to:
- SR104-DS – Double-Sliding Window
- SR104-F – Fixed Glass Window
- SR104-SE – SE-Series Sliding Window
- 2007–2026 Mercedes-Benz Sprinter
- 144" Wheelbase
- Low Roof or High Roof
- Passenger Side Rear Quarter Position
The general process is:
- Identify and carefully cut the required inner sheet metal from inside the van when possible.
- File and deburr the cut edges so there are no sharp or raised areas.
- Prime or protect all freshly exposed steel.
- Install Trim-Lok edge molding over the finished sheet-metal edge.
- Clean all metal debris from the rear quarter cavity.
- Dry-fit the actual SR104 window and verify complete clearance before applying automotive urethane.
- Urethane-bond the window in place and allow the adhesive to fully cure.
Important: Always verify the actual Sprinter configuration and exact SR104 window before cutting. The illustrated cut area is intended as a visual reference and not as an exact cutting template.
FAQ
What vehicles does this window fit?
Mercedes-Benz Sprinter vans (2007-2026) with a 144" wheelbase, Low Roof or High Roof. Passenger side rear quarter position.
What are the measurements?
Overall size: 1631 mm x 705 mm (64.21 in x 27.76 in).
Does it include a screen?
Yes. It includes an integrated insect screen for bug-free airflow.
What tint is used?
17% solar privacy glass.
How is it installed?
Urethane-bonded installation using automotive glass urethane.
Vehicle Fitment Guide
Mercedes-Benz Sprinter Van
| Model | Sprinter Van |
|---|---|
| Wheelbase | 144" |
| Model Years | 2007–2026 |
| Roof Height | Low Roof or High Roof |
Designed to fit Mercedes-Benz Sprinter vans within the configurations listed above.
