Description

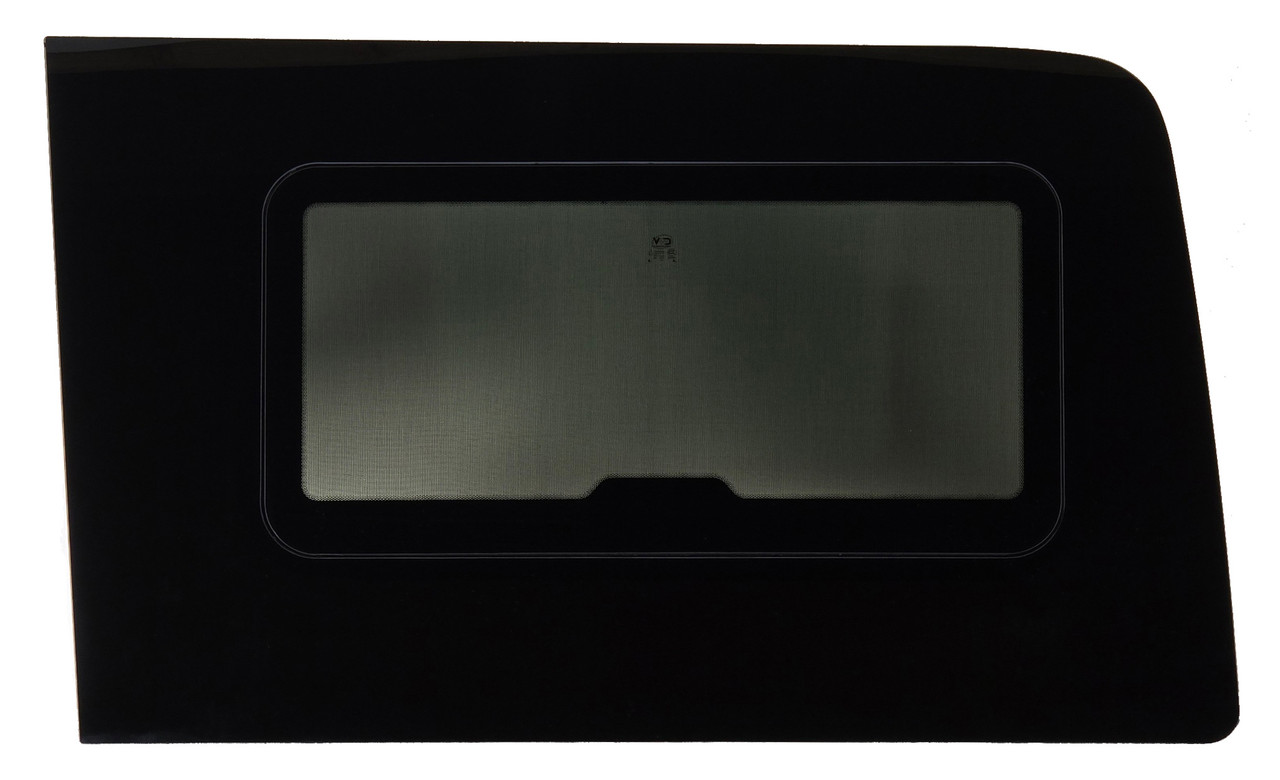

Sprinter Passenger Side Rear Quarter Sliding Window (170 / 170 EXT) | VWD SE-Series SR103-SE (2007-2026)
The VWD SR103-SE is the passenger-side rear-quarter half slider, designed specifically for Sprinter 170 and 170 EXT builds. This window features a forward-set opening so the vent sits where airflow is cleaner, giving you ventilation that actually works. Solar privacy glass (17% UV), integrated bug screen, and a secure spring latch make this a functional rear quarter solution. Urethane-bonded installation provides a sealed, factory-style finish.
Key Features
- Half slider rear quarter window designed for Sprinter 170 and 170 EXT only
- Forward-set opening for better airflow in the rear quarter
- Solar privacy tempered glass (17% UV)
- Integrated bug screen
- Secure spring latch system
- Urethane bonded installation
- 1 year warranty
Fitment
- Vehicle: Mercedes-Benz Sprinter Van
- Years: 2007-2026
- Roof: Low roof or high roof
- Wheelbase: 170 in and 170 in Extended only
- Position: Passenger Side Rear Quarter
Technical Specifications
| Model | SR103-SE |
| Window Type | Half Slider (Forward-Set Opening) |
| Overall Dimensions | 1290 mm x 768 mm (50.79 in x 30.24 in) |
| Vent Opening | 406.40 mm x 463.55 mm (16 in W x 18-1/4 in H) |
| Glass | Solar Privacy Tempered Glass (17% UV) |
| Screen | Integrated bug screen |
| Installation | Urethane Bonded |
| Manufactured In | China |
| Warranty | 1 Year |
Installation
This is a urethane-bonded window. Prep the cutout, dry-fit, clean, prime, and set with automotive glass urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
Mercedes Sprinter SR103 Installation Overview
Installation of the SR103 passenger side rear quarter windows requires removal of a portion of the inner stamped sheet metal on compatible Mercedes-Benz Sprinter vans.
This installation overview applies to:
- SR103-AW – Premium Awning Window
- SR103-CA – Crank-Out Awning Window
- SR103-F – Fixed Glass Window
- SR103-DS – Double-Sliding Window
- 2007–2026 Mercedes-Benz Sprinter
- Passenger Side Rear Quarter Position
The general process is:
- Identify and carefully cut the required inner sheet metal from inside the van when possible.
- File and deburr the cut edges so there are no sharp or raised areas.
- Prime or protect all freshly exposed steel.
- Install Trim-Lok edge molding over the finished sheet-metal edge.
- Clean all metal debris from the rear quarter cavity.
- Dry-fit the actual SR103 window and verify complete clearance before applying automotive urethane.
- Urethane-bond the window in place and allow the adhesive to fully cure.
Important: Always verify the actual Sprinter configuration, wheelbase, and exact SR103 window before cutting. The illustrated cut area is intended as a visual reference and not as an exact cutting template.
FAQ
What vehicles does this window fit?
Mercedes-Benz Sprinter Van 2007-2026, 170 and 170 Extended wheelbase only, low roof or high roof, passenger side rear quarter position.
Will this fit a 144 wheelbase Sprinter?
No. SR103-SE is for 170 and 170 Extended wheelbase Sprinters only.
What are the measurements?
Overall: 1290 mm x 768 mm (50.79 in x 30.24 in). Vent opening: 406.40 mm x 463.55 mm (16 in W x 18-1/4 in H).
What tint is used?
Solar privacy tempered glass with a 17% UV rating.
How is it installed?
Urethane bonded installation.
Vehicle Fitment Guide
Mercedes-Benz Sprinter Van
| Model | Sprinter Van |
|---|---|
| Wheelbase | 170" |
| Model Years | 2007–2026 |
| Roof Height | Low Roof or High Roof |
Designed to fit Mercedes-Benz Sprinter vans within the configurations listed above.
