Description

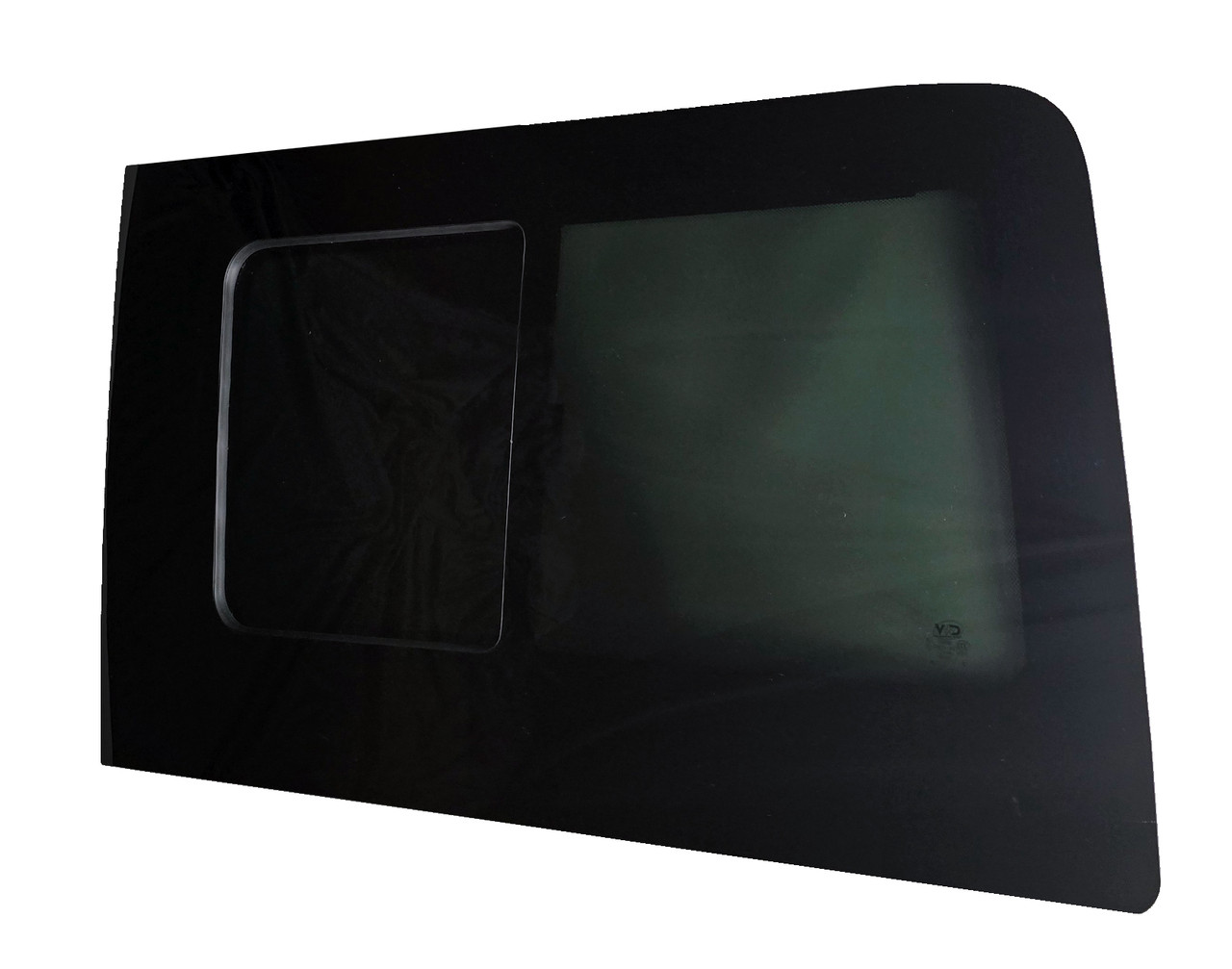

Sprinter Driver Side Rear Quarter Sliding Window (170 / 170 EXT) | VWD SE-Series SL103-SE (2007-2026)
The VWD SL103-SE is the driver-side rear-quarter half slider, designed specifically for Sprinter 170 and 170 EXT builds. This window uses a forward-set opening, so the vent is positioned in cleaner airflow, rather than openings that sit too close to the rear door wake. Solar privacy glass (17% UV), an integrated bug screen, and a secure latch give you ventilation you can actually use. Urethane bonded install for a sealed, factory-style finish.
Key Features
- Half slider rear quarter window for Sprinter 170 and 170 EXT only
- Forward-set opening for better real airflow in the rear quarter
- Solar privacy tempered glass (17% UV)
- Integrated bug screen
- Secure latch for driving
- Urethane-bonded installation
- 1-year warranty
Fitment
- Vehicle: Mercedes-Benz Sprinter Van
- Years: 2007-2026
- Roof: Low roof or high roof
- Wheelbase: 170 in and 170 in Extended only
- Position: Driver Side Rear Quarter
Technical Specifications
| Model | SL103-SE |
| Window Type | Half Slider (Forward-Set Opening) |
| Overall Dimensions | 1290 mm x 768 mm (50.79 in x 30.24 in) |
| Vent Opening | 406.40 mm x 463.55 mm (16 in W x 18-1/4 in H) |
| Glass | Solar Privacy Tempered Glass (17% UV) |
| Screen | Integrated bug screen |
| Installation | Urethane Bonded |
| Manufactured In | China |
| Warranty | 1 Year |
Installation
This is a urethane-bonded window. Prep the cutout, dry-fit, clean, prime, and set with automotive glass urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer specs.
Mercedes Sprinter SL103 Installation Overview
Installation of the SL103 driver side rear quarter windows requires removal of a portion of the inner stamped sheet metal on compatible Mercedes-Benz Sprinter vans.
This installation overview applies to:
- SL103-AW – Premium Awning Window
- SL103-CA – Crank-Out Awning Window
- SL103-F – Fixed Glass Window
- SL103-DS – Double-Sliding Window
- Driver Side Rear Quarter Position
The general process is:
- Identify and carefully cut the required inner sheet metal from inside the van when possible.
- File and deburr the cut edges so there are no sharp or raised areas.
- Prime or protect all freshly exposed steel.
- Install Trim-Lok edge molding over the finished sheet-metal edge.
- Clean all metal debris from the rear quarter cavity.
- Dry-fit the actual SL103 window and verify clearance before applying automotive urethane.
- Urethane-bond the window in place and allow the adhesive to fully cure.
Important: Always verify the exact SL103 model, Sprinter configuration, and actual vehicle before cutting. The illustrated cut area is intended as a visual reference and not as an exact cutting template.
FAQ
What vehicles does this window fit?
Mercedes-Benz Sprinter Van 2007-2026, 170 and 170 Extended wheelbase only, low roof or high roof, driver side rear quarter position.
Will this fit a 144 wheelbase Sprinter?
No. SL103-SE is for 170 and 170 Extended wheelbase Sprinters only.
What are the measurements?
Overall: 1290 mm x 768 mm (50.79 in x 30.24 in). Vent opening: 406.40 mm x 463.55 mm (16 in W x 18-1/4 in H).
What tint is used?
Solar privacy tempered glass with a 17% UV rating.
How is it installed?
Urethane bonded installation.
Vehicle Fitment Guide
Mercedes-Benz Sprinter Van
| Model | Sprinter Van |
|---|---|
| Wheelbase | 170" |
| Model Years | 2007–2026 |
| Roof Height | Low Roof or High Roof |
Designed to fit Mercedes-Benz Sprinter vans within the configurations listed above.
