Description

Sprinter Driver Side Rear Quarter Awning Window | VWD Crank-Out Awning SL103-CA

This VWD crank-out awning window is built for the Sprinter driver side rear quarter on 170 and 170EXT wheelbase vans. You get controlled ventilation in wet weather, daytime privacy from 17% solar privacy glass, and a clean OEM all-glass look. Urethane bonded install for a sealed, professional finish.

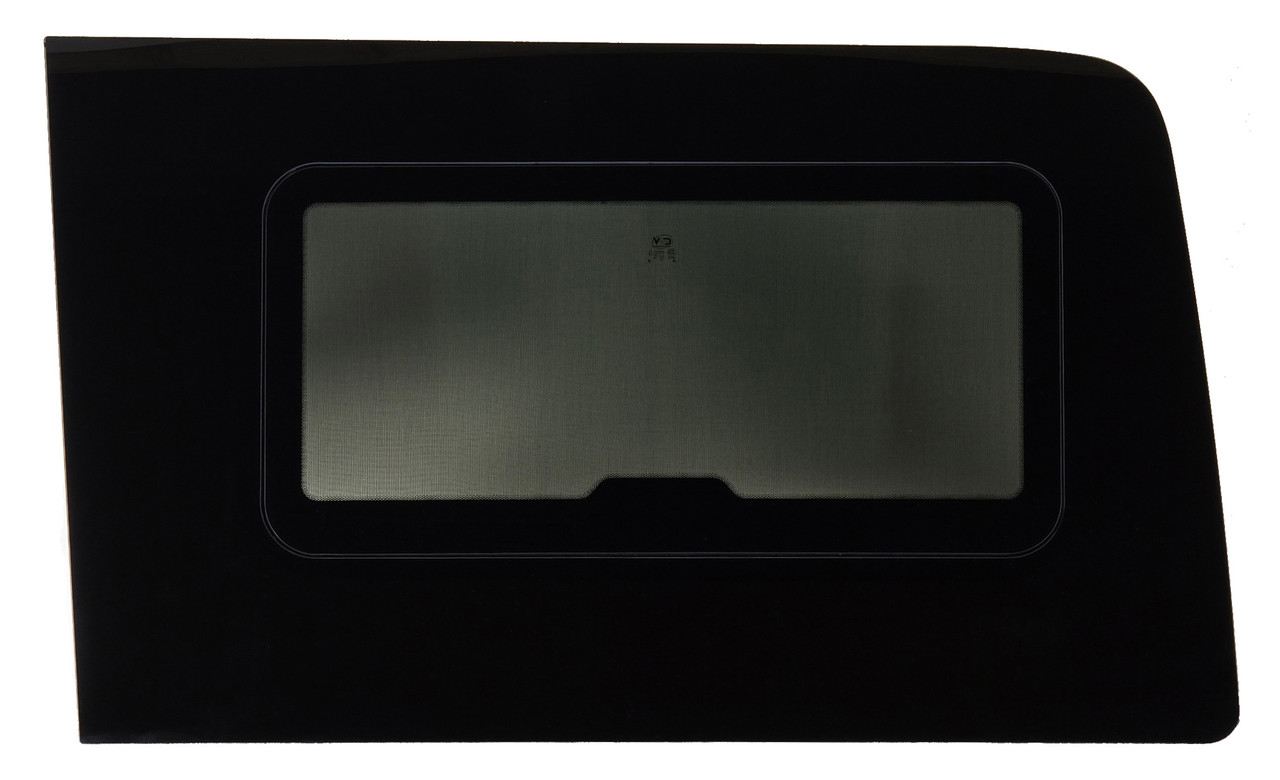

Sprinter driver side rear quarter crank-out awning window SL103-CA with 17% solar privacy glass and bug screen

Key Features

  • Crank-out awning design for ventilation in rain
  • Solar privacy glass (17% UV)
  • Driver side rear quarter position for Sprinter 170/170EXT
  • OEM all-glass exterior look
  • Urethane bonded installation
  • 1 year warranty

Fitment

  • Vehicle: Mercedes-Benz Sprinter Van
  • Years: Check your body position and wheelbase
  • Roof: High roof or low roof
  • Wheelbase: 170 and 170EXT
  • Position: Driver Side Rear Quarter

Technical Specifications

Model SL103-CA
Window Type Crank-Out Awning
Overall Dimensions 50.79 in x 30.24 in (1290 mm x 768 mm)
Opening Dimensions 33.82 in x 16.65 in (859 mm x 423 mm)
Crank-Out Opening Up to 3 in (76 mm)
Glass Solar Privacy Glass (17% UV)
Installation Urethane Bonded
Warranty 1 Year

Installation

This is a urethane bonded window. Prep the cutout, dry-fit, clean, prime, and set with automotive glass urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer specs.

Mercedes Sprinter SL103 Installation Overview

Installing the SL103 driver-side rear quarter windows requires removing a portion of the inner stamped sheet metal on compatible Mercedes-Benz Sprinter vans.

This installation overview applies to:

  • SL103-AW – Premium Awning Window
  • SL103-CA – Crank-Out Awning Window
  • SL103-F – Fixed Glass Window
  • SL103-DS – Double-Sliding Window
  • Driver Side Rear Quarter Position

The general process is:

  1. Identify and carefully cut the required inner sheet metal from inside the van when possible.
  2. File and deburr the cut edges to remove any sharp or raised areas.
  3. Prime or protect all freshly exposed steel.
  4. Install Trim-Lok edge molding over the finished sheet-metal edge.
  5. Clean all metal debris from the rear quarter cavity.
  6. Dry-fit the actual SL103 window and verify clearance before applying automotive urethane.
  7. Urethane-bond the window in place and allow the adhesive to fully cure.

Important: Always verify the exact SL103 model, Sprinter configuration, and actual vehicle before cutting. The illustrated cut area is a visual reference, not an exact cutting template.

View Full SL103 Installation Guide

View & Print Full Illustrated Guide

FAQ

What vehicles does this window fit?

Mercedes-Benz Sprinter Van (170/170EXT wheelbase), high roof or low roof, driver side rear quarter position.

What are the measurements?

Overall: 50.79 in x 30.24 in (1290 mm x 768 mm). Opening: 33.82 in x 16.65 in (859 mm x 423 mm).

What tint is used?

Solar privacy glass with a 17% UV privacy tint.

How is it installed?

Urethane bonded installation.

How far does the awning open?

Up to 3 inches (76mm).

Extra Information

Brand:
Van Windows Direct
Window Position:
Driver Side Rear Quarter

Warranty Information

1-Year Warranty

Installation Note: Window alignment may vary depending on vehicle curvature, window style, and installation methods.
