Description

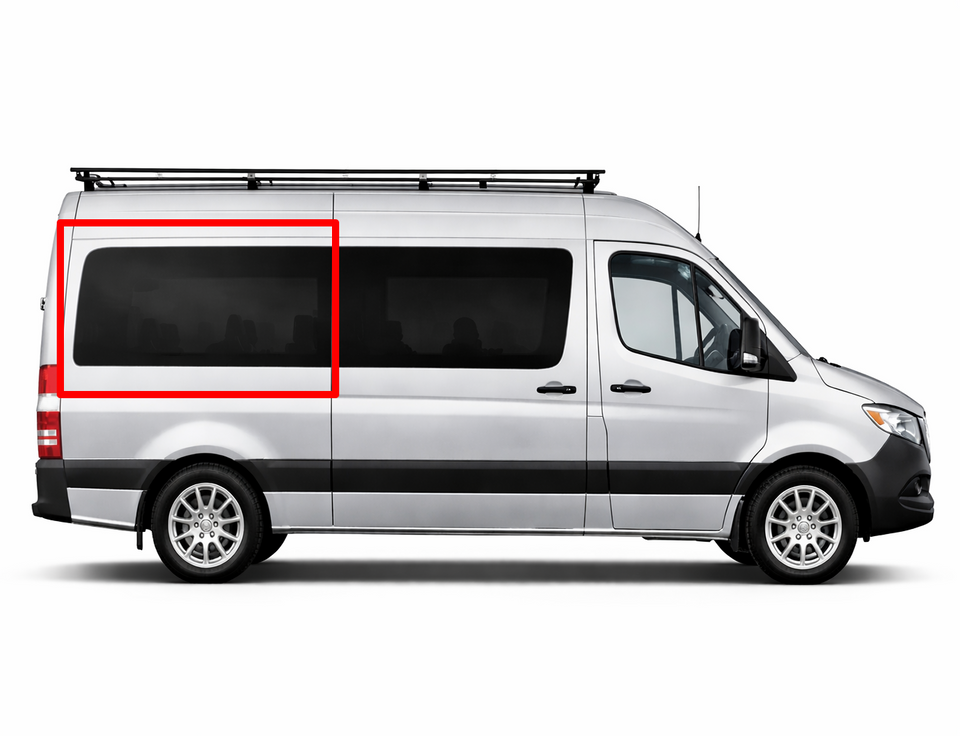

Sprinter Passenger Side Rear Quarter Fixed Glass Window (144 WB) | VWD SR104-F
Factory look. Solid fixed glass. Direct-fit for the Sprinter passenger side rear quarter on 144 wheelbase vans. Grey solar privacy glass for cleaner visibility with real privacy.
Key Features
- Solid fixed glass OE-style window
- Position: passenger side rear quarter
- Fitment: Mercedes Sprinter 144" wheelbase
- Grey solar privacy glass
- 17% UV filter rating helps reduce heat and UV exposure
- Tempered automotive safety glass (DOT/SAE)
- Urethane-bonded installation for a sealed, factory-style finish
- Usually ships in 5 days or less
- 1-year warranty
Fitment
- Vehicle: Mercedes-Benz Sprinter Van
- Window position: Passenger Side Rear Quarter
- Wheelbase: 144"
- Model years: 2007–2026
- Roof height: Low Roof or High Roof
Technical Specifications
| SKU | SR104-F |
| Window Type | Solid Fixed Glass OE Style Van Window |
| Vehicle | Mercedes-Benz Sprinter Van |
| Window Position | Passenger Side Rear Quarter |
| Wheelbase | 144" |
| Model Years | 2007–2026 |
| Roof Height | Low Roof or High Roof |
| Glass | Grey Solar Privacy Glass |
| UV Filter Rating | 17% |
| Safety | Tempered Automotive Safety Glass (DOT/SAE) |
| Installation | Urethane Bonded |
| Warranty | 1 Year |
Measurements
Overall Dimensions: 1631mm x 705mm (64.21" x 27.76")
Installation
This is a urethane-bonded window. Dry-fit first. Prep the opening, treat the cut edge, clean, and prime per urethane specs. Set the window with automotive urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
Mercedes Sprinter SR104 Installation Overview
Installing the SR104 passenger-side rear quarter windows requires removing a portion of the inner stamped sheet metal on compatible Mercedes-Benz Sprinter vans.
This installation overview applies to:
- SR104-DS – Double-Sliding Window
- SR104-F – Fixed Glass Window
- SR104-SE – SE-Series Sliding Window
- 2007–2026 Mercedes-Benz Sprinter
- 144" Wheelbase
- Low Roof or High Roof
- Passenger Side Rear Quarter Position
The general process is:
- Identify and carefully cut the required inner sheet metal from inside the van when possible.
- File and deburr the cut edges to remove sharp or raised areas.
- Prime or protect all freshly exposed steel.
- Install Trim-Lok edge molding over the finished sheet-metal edge.
- Clean all metal debris from the rear quarter cavity.
- Dry-fit the actual SR104 window and verify complete clearance before applying automotive urethane.
- Urethane-bond the window in place and allow the adhesive to fully cure.
Important: Always verify the actual Sprinter configuration and exact SR104 window before cutting. The illustrated cut area is for reference only, not an exact cutting template.
FAQ
What vehicles and positions does SR104-F fit?
Mercedes-Benz Sprinter van. Position: passenger side rear quarter. Fitment listed for 2007–2026 Sprinter vans with 144" wheelbase and low roof or high roof.
What are the measurements?
Overall dimensions: 1631 mm x 705 mm (64.21 in x 27.76 in).
What glass and UV rating does it use?
Grey solar privacy glass with a 17% UV filter rating.
Is the glass safety-rated?
Yes. Tempered automotive safety glass built to DOT/SAE standards.
How is it installed?
Urethane-bonded installation using automotive glass urethane. Prep and prime per urethane specs, set the glass, and support during cure.
Vehicle Fitment Guide
Mercedes-Benz Sprinter Van
| Model | Sprinter Van |
|---|---|
| Wheelbase | 144" |
| Model Years | 2007–2026 |
| Roof Height | Low Roof or High Roof |
Designed to fit Mercedes-Benz Sprinter vans within the configurations listed above.
