Description

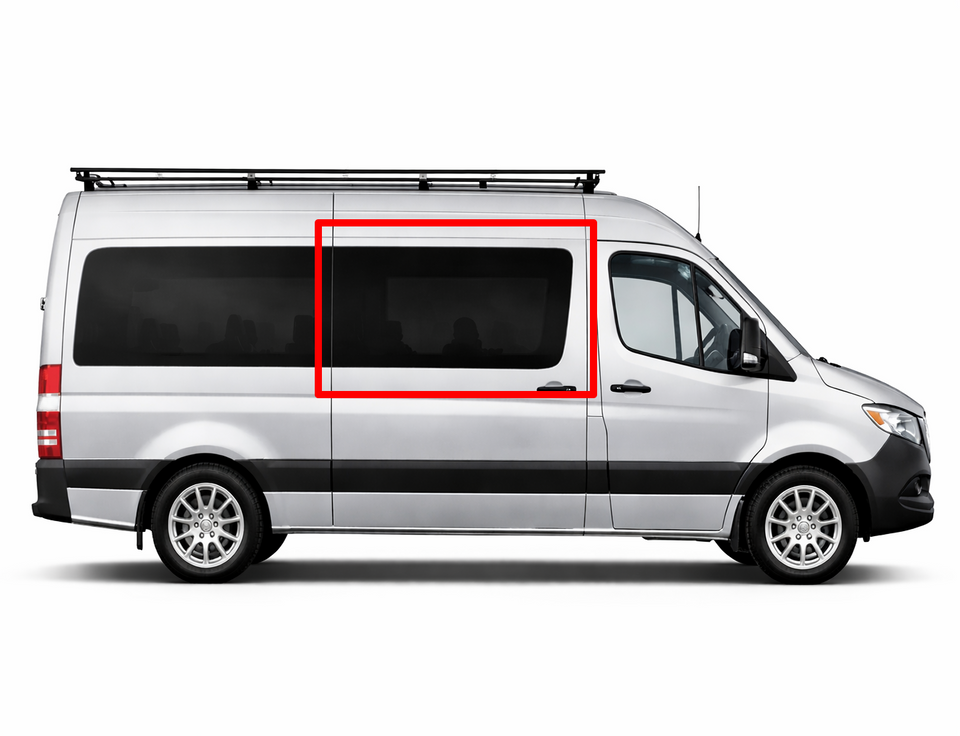

Sprinter Passenger Side Sliding Door Fixed Glass Window | VWD SR101-F
Factory look. Solid fixed glass. Direct-fit for the Sprinter passenger side sliding door. Works with high- and low-roof models. Grey solar privacy glass for a cleaner look and better privacy.
Key Features
- Solid fixed glass OE-style window
- Position: passenger-side sliding door
- Fitment: Sprinter (high roof or low roof)
- Grey solar privacy glass
- 17% UV protection helps reduce heat and glare
- Tempered automotive safety glass (DOT/SAE)
- Urethane-bonded installation for a sealed, factory-style finish
- Usually ships in 5 days or less
- 1-year warranty
Fitment
- Vehicle: Mercedes-Benz Sprinter Van
- Window position: Passenger Side Sliding Door
- Roof height: High Roof or Low Roof
Technical Specifications
| SKU | SR101-F |
| Window Type | Solid Fixed Glass OE Style Van Window |
| Vehicle | Mercedes-Benz Sprinter Van |
| Window Position | Passenger Side Sliding Door |
| Roof Height | High Roof or Low Roof |
| Glass | Grey Solar Privacy Glass |
| UV Protection | 17% |
| Safety | Tempered Automotive Safety Glass (DOT/SAE) |
| Installation | Urethane Bonded |
| Warranty | 1 Year |
Measurements
Overall Size: 1402mm x 777mm (55.20" x 30.6")
Installation
This is a urethane-bonded window. Dry-fit first. Prep the opening, treat the cut edge, clean, and prime per urethane specs. Set the window with automotive urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
Mercedes Sprinter SR101 Installation Overview
Installing the SR101 passenger-side sliding door windows requires removing a portion of the inner stamped sheet metal on compatible Mercedes-Benz Sprinter vans.
This installation overview applies to:
- SR101-AW – Premium Awning Window
- SR101-CA – Crank-Out Awning Window
- SR101-DS – Double-Sliding Window
- SR101-F – Fixed Glass Window
- SR101-SE – SE-Series Sliding Window
- SR101-SER – Rear-Opening Sliding Window
- 2007–2026 Mercedes-Benz Sprinter
- 144" or 170" Wheelbase
- Low Roof or High Roof
- Passenger Side Sliding Door Position
The general process is:
- Identify and carefully cut the required inner sheet metal from inside the sliding door when possible.
- File and deburr the cut edges to remove sharp or raised areas.
- Prime or protect all freshly exposed steel.
- Install Trim-Lok edge molding over the finished sheet-metal edge.
- Clean all metal debris from the sliding door cavity.
- Dry-fit the actual SR101 window and verify complete clearance before applying automotive urethane.
- Verify sliding-door clearance and travel where aftermarket flares, capsules, or other exterior accessories are present.
- Urethane-bond the window in place and allow the adhesive to fully cure.
Important: Always verify the actual Sprinter configuration and exact SR101 window before cutting. The illustrated cut area is a visual reference, not an exact cutting template.
FAQ
What vehicle and position does SR101-F fit?
Mercedes-Benz Sprinter van. Position: passenger side sliding door. Designed for high-roof and low-roof models.
What are the measurements?
Overall size: 1402 mm x 777 mm (55.20 in x 30.6 in).
What glass and UV protection does it use?
Grey solar privacy glass with 17% UV protection to help reduce heat and glare and improve privacy.
Is the glass safety-rated?
Yes. Tempered automotive safety glass built to meet or exceed DOT/SAE standards.
How is it installed?
Urethane-bonded installation using automotive glass urethane. Prep and prime per urethane specs, set the glass, and support during cure.
Vehicle Fitment Guide
Mercedes-Benz Sprinter Van
| Model | Sprinter Van |
|---|---|
| Wheelbase | 144" or 170" |
| Model Years | 2007–2026 |
| Roof Height | Low Roof or High Roof |
Designed to fit Mercedes-Benz Sprinter vans within the configurations listed above.
