Description

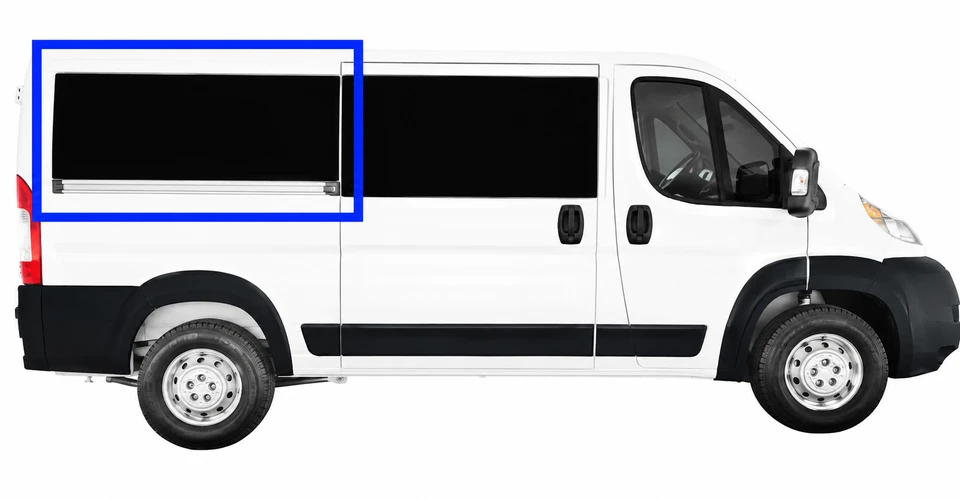

ProMaster Passenger Side Rear Quarter Fixed Glass Window (136 WB) | VWD RR305-F
Factory look. Solid fixed glass. Direct-fit for the ProMaster passenger side rear quarter on 136 wheelbase vans. Grey solar privacy glass for real privacy and cleaner visibility.
Key Features
- Solid fixed glass OE-style window
- Position: passenger side rear quarter
- Fitment: RAM ProMaster 136" wheelbase
- Grey solar privacy glass
- 17% UV filter rating helps reduce heat and glare
- Tempered automotive safety glass (DOT/SAE)
- Urethane-bonded installation for a sealed, factory-style finish
- Usually ships in 5 days or less
- 1-year warranty
Fitment
- Vehicle: RAM ProMaster Van
- Window position: Passenger Side Rear Quarter
- Wheelbase: 136"
- Model years: 2014–2026
- Roof height: Low Roof or High Roof
Technical Specifications
| SKU | RR305-F |
| Window Type | Solid Fixed Glass OE Style Van Window |
| Vehicle | RAM ProMaster Van |
| Window Position | Passenger Side Rear Quarter |
| Wheelbase | 136" |
| Model Years | 2014–2026 |
| Roof Height | Low Roof or High Roof |
| Glass | Grey Solar Privacy Glass |
| UV Filter Rating | 17% |
| Safety | Tempered Automotive Safety Glass (DOT/SAE) |
| Installation | Urethane Bonded |
| Warranty | 1 Year |
Measurements
Measurements: 1507mm x 586mm (60.71" x 23.07")
Installation
This is a urethane-bonded window. Dry-fit first. Prep the opening, treat the cut edge, clean, and prime per urethane specs. Set the window with automotive urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
RAM ProMaster RR305-F Installation Overview
Installation of the RR305-F passenger side rear quarter fixed glass window requires removal of a portion of the inner stamped sheet metal on compatible RAM ProMaster 136" wheelbase vans.
This installation overview applies to:
- RR305-F – Fixed Glass Window
- 2014–2026 RAM ProMaster
- 136" Wheelbase
- Low Roof or High Roof
- Passenger Side Rear Quarter Position
The general process is:
- Identify and carefully cut the required inner sheet metal from inside the van when possible.
- File and deburr the cut edges to remove sharp or raised areas.
- Prime or protect all freshly exposed steel.
- Install Trim-Lok edge molding over the finished sheet-metal edge.
- Clean all metal debris from the rear quarter cavity.
- Dry-fit the RR305-F window and verify complete clearance before applying automotive urethane.
- Urethane-bond the window in place and allow the adhesive to fully cure.
Important: Always verify the actual ProMaster configuration and exact RR305-F window before cutting. The illustrated cut area is for reference only, not an exact cutting template.
FAQ
What vehicles and positions does RR305-F fit?
RAM ProMaster van. Position: passenger side rear quarter. Fitment listed for 2014–2026 ProMaster vans with 136" wheelbase and low roof or high roof.
What are the measurements?
Measurements: 1507 mm x 586 mm (60.71 in x 23.07 in).
What glass and UV rating does it use?
Grey solar privacy glass with a 17% UV filter rating.
Is the glass safety-rated?
Yes. Tempered automotive safety glass built to DOT/SAE standards.
How is it installed?
Urethane-bonded installation using automotive glass urethane. Prep and prime per urethane specs, set the glass, and support during cure.
RAM ProMaster Van
| Model | ProMaster Van |
|---|---|
| Wheelbase | 136" |
| Model Years | 2014–2026 |
| Roof Height | Low Roof or High Roof |
Compatible with RAM ProMaster vans within the configurations listed above.
