Description

Premium Awning Van Window for Sprinter 170 Passenger Side Rear Quarter | SR103-AW

Direct fit for Sprinter 170 rear quarter (passenger side). Piston-driven awning ventilation. Retractable bug screen and pleated UV shade built in. Solar privacy-tinted tempered glass.

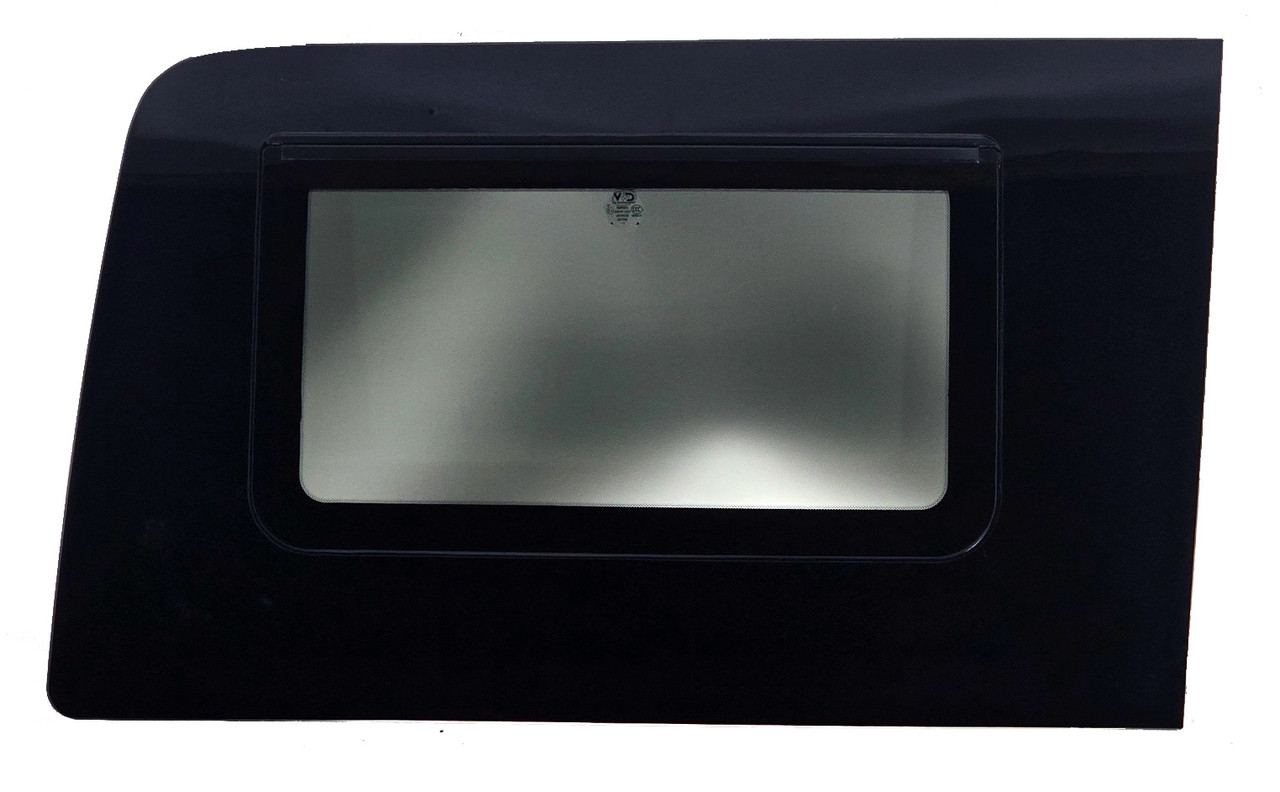

VWD SR103-AW premium awning window for Sprinter 170 passenger side rear quarter

Key Features

  • Direct fit: Mercedes-Benz Sprinter 170" wheelbase (2007–2026)
  • Position: passenger side rear quarter
  • Piston-driven awning operation for smooth, controlled ventilation
  • Weather-safe awning design for airflow during light rain
  • Built-in retractable bug screen
  • Integrated pleated UV shade for privacy and heat control
  • Solar privacy-tinted tempered glass (17% tint)
  • Generally ships in 5 days or less
  • Warranty: 1 year

Fitment

  • Vehicle: Mercedes-Benz Sprinter Van
  • Wheelbase: 170"
  • Model years: 2007–2026
  • Roof height: low roof or high roof
  • Window position: passenger side rear quarter
  • Note: may not work with some flare extensions

Technical Specifications

SKU SR103-AW
Window Type Premium Awning Van Window
Vehicle Mercedes-Benz Sprinter Van
Wheelbase 170"
Model Years 2007–2026
Roof Height Low Roof or High Roof
Window Position Passenger Side Rear Quarter
Glass Solar Privacy Tinted Tempered Glass (17% tint)
Screen Built-In Retractable Bug Screen
Shade Pleated UV Shade (integrated)
Internal Frame Depth 65mm (2-9/16")
Fitment Note May not work with some flare extensions
Warranty 1 Year
Ships Generally ships in 5 days or less

Measurements

Overall Size: 1290mm x 768mm (50.78" x 30.23")
Awning Opening: 820mm x 455mm (32.28" x 17.91")
Internal Frame Depth: 65mm (2-9/16")

Installation

Verify measurements before cutting. Dry-fit first. Cut the opening, deburr, and protect exposed metal edges. Follow your urethane system instructions for cleaning and priming. Set the window and support it during cure.

Mercedes Sprinter SR103 Installation Overview

Installation of the SR103 passenger side rear quarter windows requires removal of a portion of the inner stamped sheet metal on compatible Mercedes-Benz Sprinter vans.

This installation overview applies to:

  • SR103-AW – Premium Awning Window
  • SR103-CA – Crank-Out Awning Window
  • SR103-F – Fixed Glass Window
  • SR103-DS – Double-Sliding Window
  • 2007–2026 Mercedes-Benz Sprinter
  • Passenger Side Rear Quarter Position

The general process is:

  1. Identify and carefully cut the required inner sheet metal from inside the van when possible.
  2. File and deburr the cut edges so there are no sharp or raised areas.
  3. Prime or protect all freshly exposed steel.
  4. Install Trim-Lok edge molding over the finished sheet-metal edge.
  5. Clean all metal debris from the rear quarter cavity.
  6. Dry-fit the actual SR103 window and verify complete clearance before applying automotive urethane.
  7. Urethane-bond the window in place and allow the adhesive to fully cure.

Important: Always verify the actual Sprinter configuration, wheelbase, and exact SR103 window before cutting. The illustrated cut area is intended as a visual reference and not as an exact cutting template.

View Full SR103 Installation Guide

View & Print Full Illustrated Guide

Explore Related Categories

FAQ

What van does the SR103-AW fit?

Mercedes-Benz Sprinter 170" wheelbase vans (2007–2026). Position: passenger side rear quarter. Low roof or high roof.

What are the window measurements?

Overall: 1290mm x 768mm (50.78" x 30.23"). Awning opening: 820mm x 455mm (32.28" x 17.91"). Internal frame depth: 65mm (2-9/16").

Does it include a screen and shade?

Yes. SR103-AW includes a built-in retractable bug screen and an integrated pleated UV privacy shade.

Can awning windows be used in light rain?

Yes. The outward awning design provides ventilation while helping reduce rain entry during light weather.

How fast does it ship?

Generally ships in 5 days or less when in stock.

Vehicle Fitment Guide

Mercedes-Benz Sprinter Van
Model Sprinter Van
Wheelbase 170"
Model Years 2007–2026
Roof Height Low Roof or High Roof

Designed to fit Mercedes-Benz Sprinter vans within the configurations listed above.

Extra Information

Brand:
Van Windows Direct
Window Position:
Passenger Side Rear Quarter

Warranty Information

1-Year Warranty

Installation Note: Window alignment may vary depending on vehicle curvature, window style, and installation methods.
