What Is the Ford Transit TL204 Window Position?

The TL204 window position is the driver side rear quarter of the Ford Transit van.

This location is the smaller rear side window pocket behind the driver-side middle section on a 148" Standard wheelbase Transit.

TL204 is not the same as the larger rear-quarter position used on the 148" Extended wheelbase.

Ford Transit TL204-F and TL204-SE Fitment

Current Van Windows Direct fitment for the TL204 family is:

• Vehicle: Ford Transit Van
• Model Years: 2015–2026
• Roof Height: Medium Roof or High Roof
• Wheelbase: 148" Standard
• Window Position: Driver Side Rear Quarter

The current product dimensions for both TL204-F and TL204-SE are approximately 668 mm x 712 mm, or roughly 26.30" wide x 28.03" high.

The TL204-SE sliding version also has a slider opening of approximately 171.45 mm x 374.65 mm, or roughly 6.75" wide x 14.75" high.

Tools and Materials Needed

• One-handed reciprocating saw, pneumatic air saw, or compact body saw
• Thin-metal automotive cutting blade
• Metal file or deburring tool
• Safety glasses
• Work gloves
• Vacuum
• Clean shop cloth
• Automotive rattle-can primer or suitable urethane primer
• Trim-Lok edge molding
• Automotive glass urethane
• High-ratio urethane gun
• Masking or window-support tape

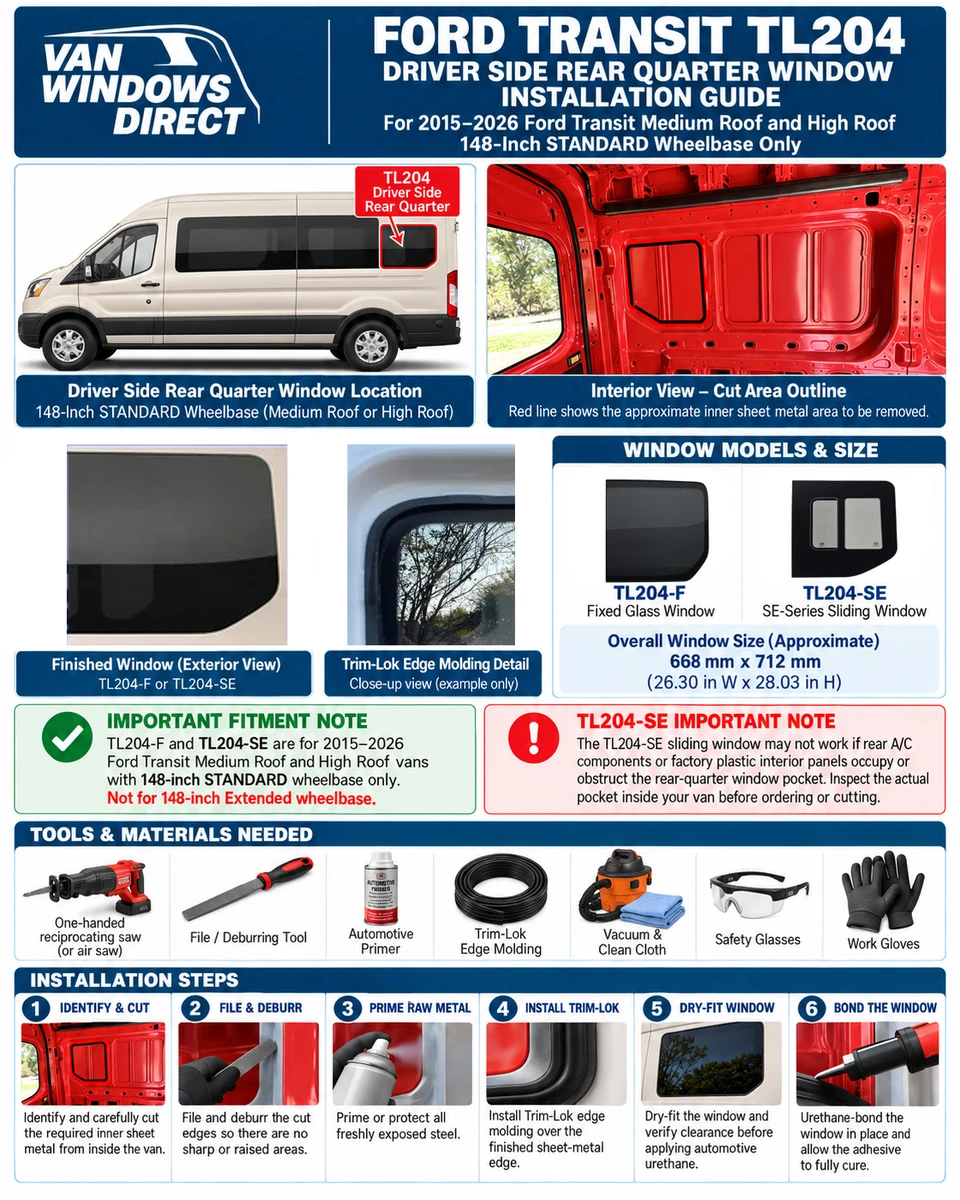

Ford Transit TL204 Rear Quarter Cutout Overview

The illustrated TL204 guide shows the approximate inner sheet-metal area that must be removed from the driver-side rear-quarter pocket.

Use the actual factory stamping, the guide image, and the real TL204 window together when identifying the area to remove.

After the sheet metal is cut, the exposed edge should be:

1. Filed smooth
2. Deburred
3. Protected from corrosion
4. Finished with Trim-Lok edge molding
5. Cleaned thoroughly
6. Dry-fit with the actual TL204 window before urethane is applied

Step-by-Step Ford Transit TL204 Window Installation

Step 1 — Verify the Driver Side Rear Quarter Position

Confirm that you are working on the driver side rear quarter of a compatible 148" Standard wheelbase Transit.

Before cutting, inspect the inside of the van for wiring, insulation, rear A/C components, factory plastic panels, aftermarket equipment, or anything else that may occupy the window pocket.

Step 2 — Identify the Inner Sheet Metal to Remove

Use the factory body stamping and illustrated guide to identify the approximate inner sheet-metal section that must be removed.

Verify the actual TL204-F or TL204-SE against the opening before making a permanent cut.

Step 3 — Cut From Inside the Van When Possible

Whenever practical, cut the inner sheet metal from inside the van.

Working from the interior provides better visibility of the stamped body structure and helps reduce the risk of damaging the exterior painted surface.

Suitable tools include:

• One-handed reciprocating saw
• Pneumatic air saw
• Compact automotive body saw

Use a blade intended for thin automotive sheet metal and work slowly.

Step 4 — Remove the Cut Sheet-Metal Section

Once the perimeter is fully cut, carefully remove the unwanted inner section.

Inspect the opening for:

• Uncut metal tabs
• Sharp corners
• Saw burrs
• Raised areas
• Irregular edges

Step 5 — File and Deburr the Opening

Use a hand file or deburring tool around the complete cut perimeter.

Remove all sharp points, lifted metal, burrs, and high spots.

The edge should be smooth enough that it does not interfere with the window or finished edge molding.

Step 6 — Protect the Raw Steel

Freshly cut automotive steel should not remain exposed.

Apply an appropriate protective coating to the raw edge.

Suitable options may include:

• Automotive rattle-can primer
• Automotive touch-up primer
• Suitable urethane-compatible primer

Allow the coating to flash or dry according to the product manufacturer's instructions.

Install Trim-Lok Edge Molding

Once the cut edge has been smoothed and protected, install Trim-Lok edge molding around the finished opening.

Trim-Lok helps:

• Cover sharp cut edges
• Protect the finished sheet metal
• Improve interior appearance
• Conceal minor cutting irregularities
• Create a cleaner finished edge

Reference Note: If the trim close-up photo comes from a different window installation, use only a close crop showing the edge molding and sheet-metal interface. Avoid showing the full unrelated window so installers do not confuse the window shape.

Step 7 — Clean the Rear Quarter Pocket

Vacuum the opening and surrounding body cavity thoroughly after cutting.

Small steel fragments left inside the van wall may eventually rust and should be removed before installation.

Step 8 — Dry-Fit the TL204 Window

Before applying urethane, place the actual TL204-F or TL204-SE into the prepared opening.

Inspect the complete perimeter for clearance.

The window should sit naturally in its intended rear-quarter position without being forced against remaining inner sheet metal.

If interference exists:

1. Remove the window
2. Identify the interference point
3. Carefully adjust the opening
4. File the new cut
5. Re-prime exposed steel
6. Reinstall edge molding where necessary
7. Dry-fit again

Urethane-Bonded TL204 Installation

Both TL204-F and TL204-SE use a urethane-bonded installation.

Prepare the vehicle and glass bonding surfaces according to the requirements of the automotive urethane system being used.

This commonly includes:

• Cleaning the body bonding surface
• Cleaning the glass bonding surface
• Applying required body primer
• Applying required glass primer when specified
• Allowing the required primer flash time

Apply a continuous automotive glass urethane bead around the required bonding perimeter.

Avoid gaps, thin spots, or inconsistent bead height.

Step 9 — Set the Window

Carefully place the TL204 window into the prepared rear-quarter opening.

Apply even pressure around the perimeter so the urethane bead makes consistent contact.

Tape or support the window during the curing period according to the urethane manufacturer's instructions.

Do not drive the van until the urethane has reached the manufacturer's specified safe-drive-away time.

TL204-SE Important Rear A/C and Interior Panel Fitment Note

TL204-F vs TL204-SE

TL204-F Fixed Glass Window

The TL204-F is the fixed-glass option for the Ford Transit driver-side rear-quarter position.

It provides a clean OE-style exterior appearance with no opening mechanism.

Shop TL204-F Fixed Glass Window

TL204-SE Sliding Window

The TL204-SE adds sliding ventilation to the driver-side rear-quarter position while maintaining the Transit-specific outer glass shape.

Its current listed slider opening is approximately 6.75" wide x 14.75" high.

Shop TL204-SE Sliding Window

Common Ford Transit TL204 Installation Mistakes

Confusing 148" Standard With 148" Extended

TL204-F and TL204-SE are for the 148" Standard wheelbase rear-quarter position. Do not use them as substitutes for the longer 148" Extended rear-quarter window.

Not Checking Rear A/C or Plastic Panels

This is especially important with TL204-SE. Inspect the rear-quarter pocket before ordering or cutting.

Cutting Too Much Sheet Metal

Remove only the material required for proper clearance. It is much easier to enlarge an opening after dry-fitting than to repair an oversized cut.

Skipping the Dry Fit

Always verify the exact TL204 window fits properly before applying urethane.

Leaving Burrs Around the Opening

File and deburr the entire perimeter before installing edge molding.

Leaving Raw Steel Exposed

Freshly cut sheet metal should receive suitable corrosion protection.

Leaving Metal Shavings in the Body Cavity

Vacuum the rear-quarter pocket thoroughly after cutting.

Shop Ford Transit TL204 Rear Quarter Windows

Frequently Asked Questions

What does TL204 fit?

TL204 fits the driver-side rear-quarter position on compatible 2015–2026 Ford Transit Medium Roof and High Roof vans with the 148" Standard wheelbase.

Does TL204 fit the 148" Extended Transit?

No. TL204 is for the 148" Standard wheelbase rear-quarter position. The Extended rear-quarter section uses a different window family.

Which TL204 window models are available?

Van Windows Direct currently offers the TL204-F fixed glass and TL204-SE sliding window.

What size are TL204 windows?

Current product specifications list an approximate overall size of 668 mm x 712 mm, or approximately 26.30" x 28.03".

Does rear A/C affect TL204-SE fitment?

It can. The TL204-SE is not compatible with some Transit configurations where rear air-conditioning components or factory plastic interior panels occupy the rear-quarter window pocket. Inspect the actual van before ordering or cutting.

Should the cut edge be primed?

Yes. Freshly exposed steel should receive suitable automotive corrosion protection before final installation.

Should Trim-Lok edge molding be installed?

Trim-Lok helps protect the finished sheet-metal edge and creates a cleaner interior appearance.

Should the TL204 window be dry-fitted before urethane installation?

Yes. Always verify the actual window position and complete clearance before applying automotive glass urethane.

What adhesive is used for TL204-F and TL204-SE?

Both use a urethane-bonded installation with suitable automotive glass urethane.

Final Ford Transit TL204 Installation Notes

Proper installation of a Ford Transit TL204 rear-quarter window requires careful preparation of the factory window pocket.

Confirm the correct 148" Standard wheelbase location, inspect for rear A/C or interior panel interference, carefully cut the required inner sheet metal, file and protect the exposed edge, install Trim-Lok, clean the body cavity, dry-fit the window, and then complete the urethane-bonded installation.

Always verify the actual vehicle and exact TL204-F or TL204-SE before making permanent modifications.
