Description

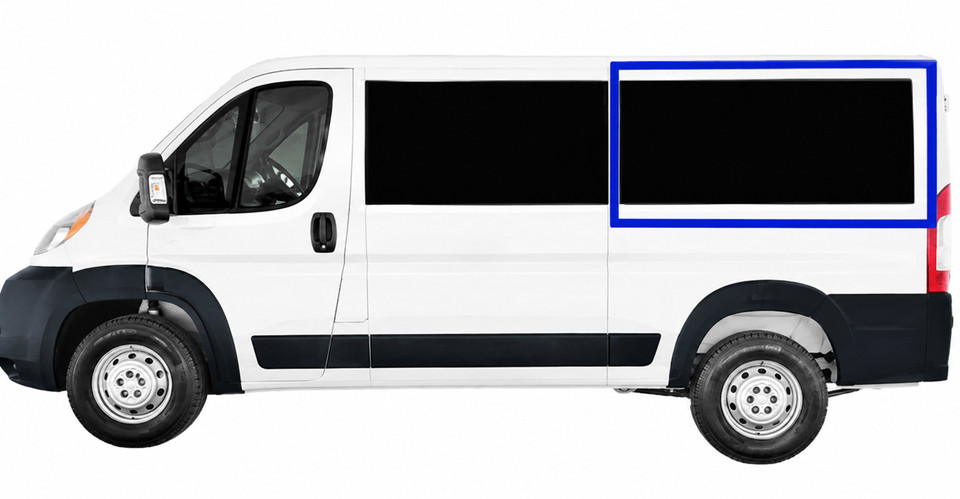

ProMaster Driver Side Rear Quarter Fixed Glass Window (136 WB) | VWD RL305-F
Factory look. Solid fixed glass. Direct-fit for the ProMaster driver side rear quarter on 136 wheelbase vans. Grey solar privacy glass for real privacy and cleaner visibility.
Key Features
- Solid fixed glass OE-style window
- Position: driver side rear quarter
- Fitment: RAM ProMaster 136" wheelbase
- Grey solar privacy glass
- 17% UV filter rating helps reduce heat and glare
- Tempered automotive safety glass (DOT/SAE)
- Urethane-bonded installation for a sealed, factory-style finish
- Usually ships in 5 days or less
- 1-year warranty
Fitment
- Vehicle: RAM ProMaster Van
- Window position: Driver Side Rear Quarter
- Wheelbase: 136"
- Model years: 2014–2025
- Roof height: Low Roof or High Roof
- Not compatible with vans with driver-side sliding doors
Technical Specifications
| SKU | RL305-F |
| Window Type | Solid Fixed Glass OE Style Van Window |
| Vehicle | RAM ProMaster Van |
| Window Position | Driver Side Rear Quarter |
| Wheelbase | 136" |
| Model Years | 2014–2025 |
| Roof Height | Low Roof or High Roof |
| Glass | Grey Solar Privacy Glass |
| UV Filter Rating | 17% |
| Safety | Tempered Automotive Safety Glass (DOT/SAE) |
| Installation | Urethane Bonded |
| Warranty | 1 Year |
Measurements
Measurements: 1542mm x 666mm (60.71" x 26.22")
Installation
This is a urethane-bonded window. Dry-fit first. Prep the opening, treat the cut edge, clean, and prime per urethane specs. Set the window with automotive urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
FAQ
What vehicles and positions does RL305-F fit?
RAM ProMaster van. Position: driver's side rear quarter. Fitment listed for 2014–2025 ProMaster vans with 136" wheelbase and low roof or high roof.
What are the measurements?
Measurements: 1542 mm x 666 mm (60.71 in x 26.22 in).
What glass and UV rating does it use?
Grey solar privacy glass with a 17% UV filter rating.
Is the glass safety-rated?
Yes. Tempered automotive safety glass built to DOT/SAE standards.
How is it installed?
Urethane-bonded installation using automotive glass urethane. Prep and prime per urethane specs, set the glass, and support during cure.
RAM ProMaster Van
| Model | ProMaster Van |
|---|---|
| Wheelbase | 136" |
| Model Years | 2014–2026 |
| Roof Height | Low Roof or High Roof |
Compatible with RAM ProMaster vans within the configurations listed above.
