Description

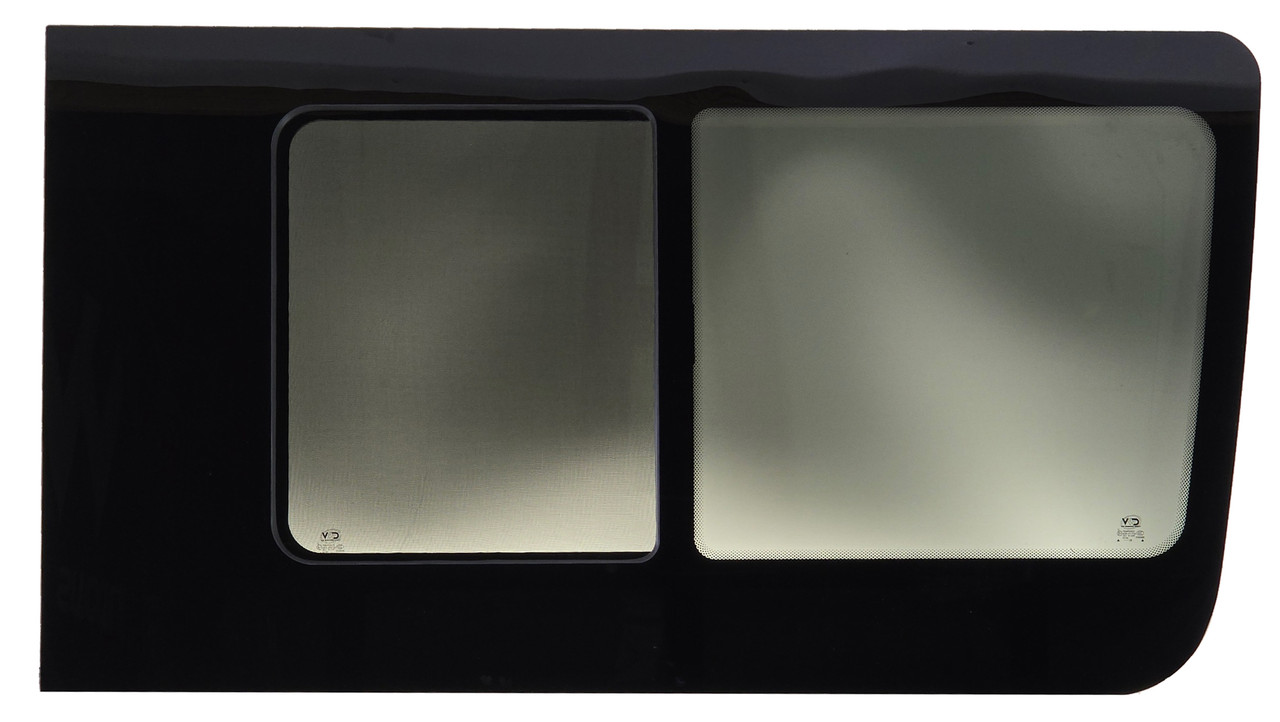

Sprinter Passenger Side Sliding Door Sliding Window (Rear Opening) | VWD SER-Series SR101-SER (2007-2026)
The VWD SR101-SER is the passenger side sliding door half slider built for Sprinter vans that need real ventilation without losing privacy. Rear-opening slider, 17% solar privacy glass, and a built-in bug screen in one clean OEM all-glass look package. Urethane bonded install for a sealed, factory-style finish.
Key Features
- Rear opening half slider for controlled ventilation
- Solar privacy glass (17% UV)
- Passenger side sliding door position for Mercedes-Benz Sprinter
- Built-in bug screen for ventilation without insects
- OEM all-glass exterior look
- Urethane bonded installation
- 1 year warranty
Fitment
- Vehicle: Mercedes-Benz Sprinter Van
- Years: 2007-2026
- Roof: Low roof or high roof
- Wheelbase: 144 or 170
- Position: Passenger Side Sliding Door
Technical Specifications
| Model | SR101-SER |
| Window Type | Rear Opening Half Slider |
| Overall Dimensions | 55.20 in x 30.6 in (1402 mm x 777 mm) |
| Opening Dimensions | 17.42 in x 20.83 in (442.4 mm x 529 mm) |
| Glass | Solar Privacy Glass (17% UV) |
| Installation | Urethane Bonded |
| Warranty | 1 Year |
Installation
This is a urethane bonded window. Prep the cutout, dry-fit, clean, prime, and set with automotive glass urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer specs.
Mercedes Sprinter SR101 Installation Overview
Installing the SR101 passenger-side sliding door windows requires removing a portion of the inner stamped sheet metal on compatible Mercedes-Benz Sprinter vans.
This installation overview applies to:
- SR101-AW – Premium Awning Window
- SR101-CA – Crank-Out Awning Window
- SR101-DS – Double-Sliding Window
- SR101-F – Fixed Glass Window
- SR101-SE – SE-Series Sliding Window
- SR101-SER – Rear-Opening Sliding Window
- 2007–2026 Mercedes-Benz Sprinter
- 144" or 170" Wheelbase
- Low Roof or High Roof
- Passenger Side Sliding Door Position
The general process is:
- Identify and carefully cut the required inner sheet metal from inside the sliding door when possible.
- File and deburr the cut edges so there are no sharp or raised areas.
- Prime or protect all freshly exposed steel.
- Install Trim-Lok edge molding over the finished sheet-metal edge.
- Clean all metal debris from the sliding door cavity.
- Dry-fit the actual SR101 window and verify complete clearance before applying automotive urethane.
- Verify sliding-door clearance and travel where aftermarket flares, capsules, or other exterior accessories are present.
- Urethane-bond the window in place and allow the adhesive to fully cure.
Important: Always verify the actual Sprinter configuration and exact SR101 window before cutting. The illustrated cut area is intended as a visual reference and not as an exact cutting template.
FAQ
What vehicles does this window fit?
Mercedes-Benz Sprinter Van 2007-2026, 144 or 170 wheelbase, low roof or high roof, passenger side sliding door position.
What are the measurements?
Overall: 55.20 in x 30.6 in (1402 mm x 777 mm). Opening: 17.42 in x 20.83 in (442.4 mm x 529 mm).
What tint is used?
Solar privacy glass with a 17% UV rating.
How is it installed?
Urethane bonded installation.
Vehicle Fitment Guide
Mercedes-Benz Sprinter Van
| Model | Sprinter Van |
|---|---|
| Wheelbase | 144" or 170" |
| Model Years | 2007–2026 |
| Roof Height | Low Roof or High Roof |
Designed to fit Mercedes-Benz Sprinter vans within the configurations listed above.
