Description

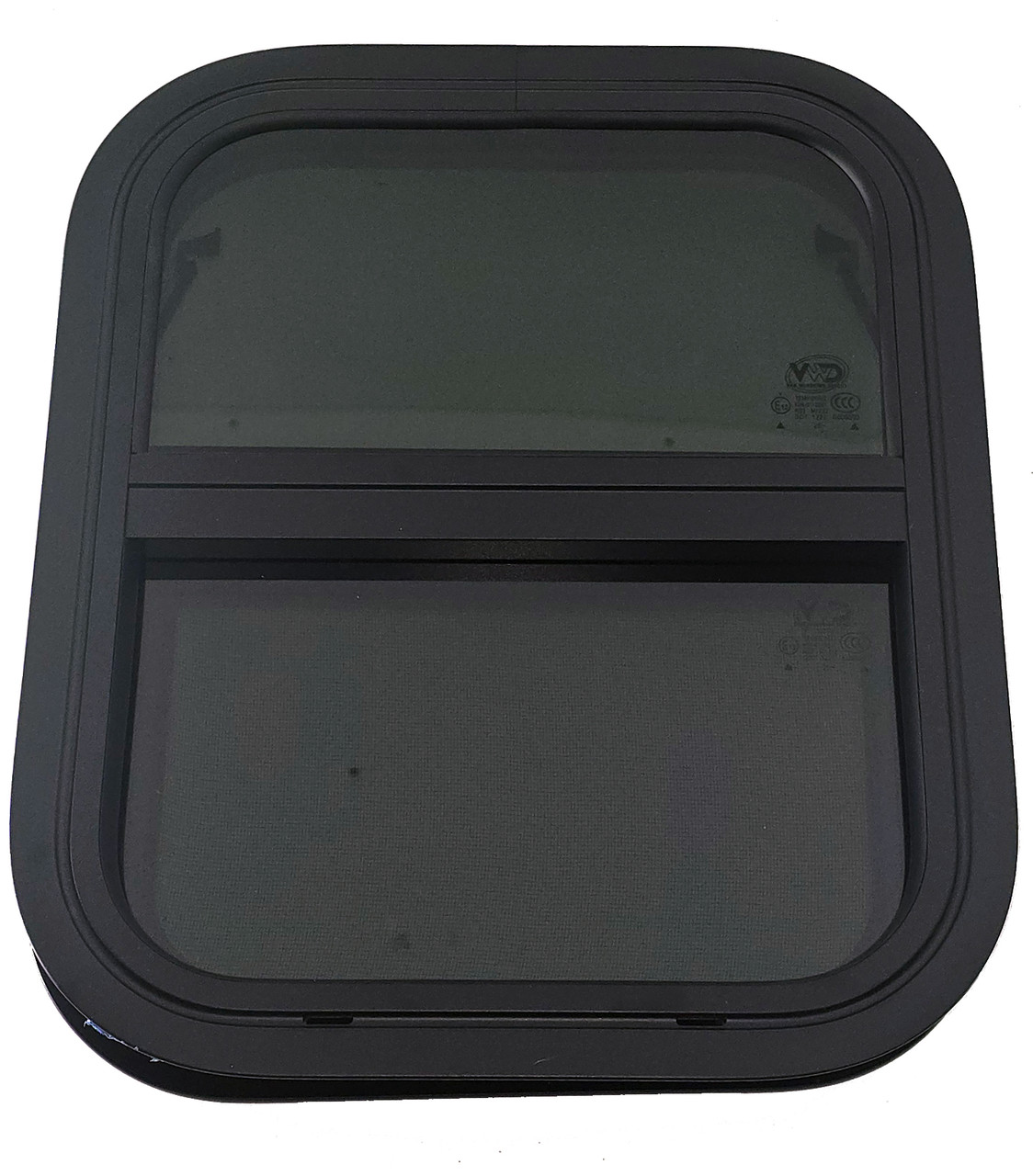

RV Series Dual-Pane Vertical Lift Slider Window | VWD VERT1518DP
Universal fit. Great for RVs, campers, trailers, and van conversions. Insulated dual-pane glass with vertical lift slider ventilation.
Key Features
- Dual-pane vertical lift slider window
- Solar privacy glass for reduced heat gain and improved privacy
- Vertical slide ventilation — easy control of airflow
- Excellent insulation and reduced condensation
- Universal fit for RVs, campers, trailers, and van conversions
- Urethane bonded or clamp ring installation
- Typically ships in 5 days or less
Fitment
- Universal window (check wall opening before ordering)
- Best for tight vertical openings and bunk or loft areas
- Great choice when a wide horizontal window won’t fit cleanly
Technical Specifications
| SKU | VERT1518DP |
| Window Type | Dual-Pane Vertical Lift Slider Window |
| Fitment | Universal (Check Measurements) |
| Glass | Dual-Pane Solar Privacy Glass |
| Ventilation | Vertical Lift Slider |
| Installation | Urethane bonded / clamp ring |
| Ships | Usually in 5 days or less |
Dimensions
Outside Frame (W x H)19-11/16 in x 16-1/2 in (500.06 mm x 419.10 mm)
Cut Frame (W x H)18-1/8 in x 15 in (460.38 mm x 381.00 mm)
Corner Radius3.1875 in (80.96 mm)
Wall Thickness Range1-7/8 in to 2-1/8 in (47.63 mm to 53.98 mm)
Installation
This is a vertical lift slider window designed to install using automotive urethane or a clamp ring system. Dry-fit first. Prep the opening, protect exposed edges, deburr, and clean. Apply a consistent urethane bead or use the clamp ring. Set the window and allow full cure time before travel.
FAQ
What type of window is VERT1518DP?
A dual-pane vertical lift slider window built for RVs, campers, trailers, and van conversions.
What are the advantages of dual-pane glass?
Dual-pane glass helps reduce heat transfer, limits condensation, improves interior comfort across temperature changes, and reduces noise compared to single pane.
Where does the window work best?
Best in narrow wall spaces such as bunk areas, loft sleeping zones, box truck builds, and compact camper layouts where typical horizontal windows won’t fit cleanly.
How is it installed?
Install using automotive urethane or a clamp ring system. Prep the opening, deburr sharp edges, apply a consistent urethane bead, set the window, and allow full cure time.
Does it include a bug screen?
Yes, dual-pane vertical lift sliders typically include an integrated screen to allow airflow while keeping insects out.
