Description

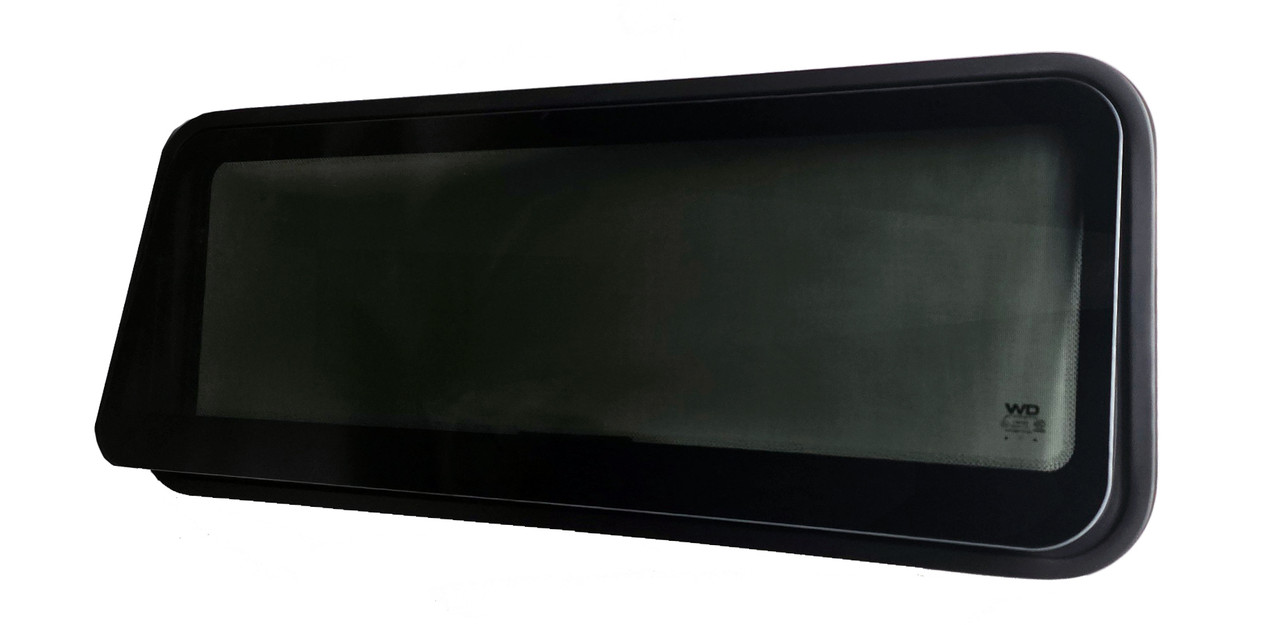

Universal Crank-Out Awning Van Bunk Window | VWD AWN4015C (41-1/4 x 16-3/8)
You want real ventilation in the bunk area. This is the bigger awning bunk option that delivers. Tilt it out up to 3 inches, keep the bugs out with the removable screen, and keep it sealed with the upgraded 3M foam seal. Universal fit means measurements matter. Verify before you cut. Not recommended behind a sliding door.
Key Features
- Universal fit for camper vans (verify by measurements)
- Tilt-out awning design opens 3 in for strong airflow
- Solar privacy glass with 17% UV rating
- Removable screen for bug-free ventilation
- Upgraded 3M foam seal for improved weather resistance
- Clamp ring installation with a 1/8 in clamp ring
- Manufactured in China
- 1-year warranty
- Not recommended behind a sliding door
Fitment
- Universal: fits any van where the cutout and mounting surface are compatible
- Typical installs: bunk/bed areas, upper wall sections, trailers, RV conversions
- Placement note: not recommended behind a sliding door
Technical Specifications
| Model | AWN4015C |
| Window Type | Awning (Tilt-Out / Crank-Out) |
| Outside Frame Dimensions | 41-1/4 in x 16-3/8 in |
| Cut-Out Dimensions | 40 in x 15 in |
| Clamp Ring Size | 1/8 in |
| Open Distance | Opens 3 in |
| Glass | Solar Privacy Glass |
| UV Rating | 17% |
| Screen | Removable screen |
| Seal | Upgraded 3M foam seal |
| Installation | Clamp Ring |
| Manufactured In | China |
| Warranty | 1 Year |
Installation
This window uses a clamp-ring installation. Confirm your mounting area and wall depth. Cut the opening to size, treat bare metal edges, then set the window with the foam gasket against the exterior. Install the 1/8 in clamp ring from the inside and tighten screws evenly in a crisscross pattern until the seal compresses uniformly. Cycle the awning open and closed to confirm smooth operation and clearance.
FAQ
Will this fit my van?
This is a universal-fit awning bunk window. If your mounting surface is suitable and you can create the required cutout, it will fit. Always verify measurements and interior clearance before cutting.
What are the measurements?
Outside frame dimensions: 41-1/4 in x 16-3/8 in. Cut-out dimensions: 40 in x 15 in. Clamp ring size: 1/8 in.
How far does it open, and does it include a screen?
It opens 3 inches and includes a removable screen for bug-free ventilation.
What tint and UV rating is used?
Solar privacy glass with a 17% UV rating.
How is it installed?
Clamp-ring installation using a 1/8 inch clamp ring and foam seal. Tighten evenly in a crisscross pattern until the seal compresses uniformly.
Can I install this behind a sliding door?
It is not recommended behind a sliding door due to clearance and interference risks.
