Description

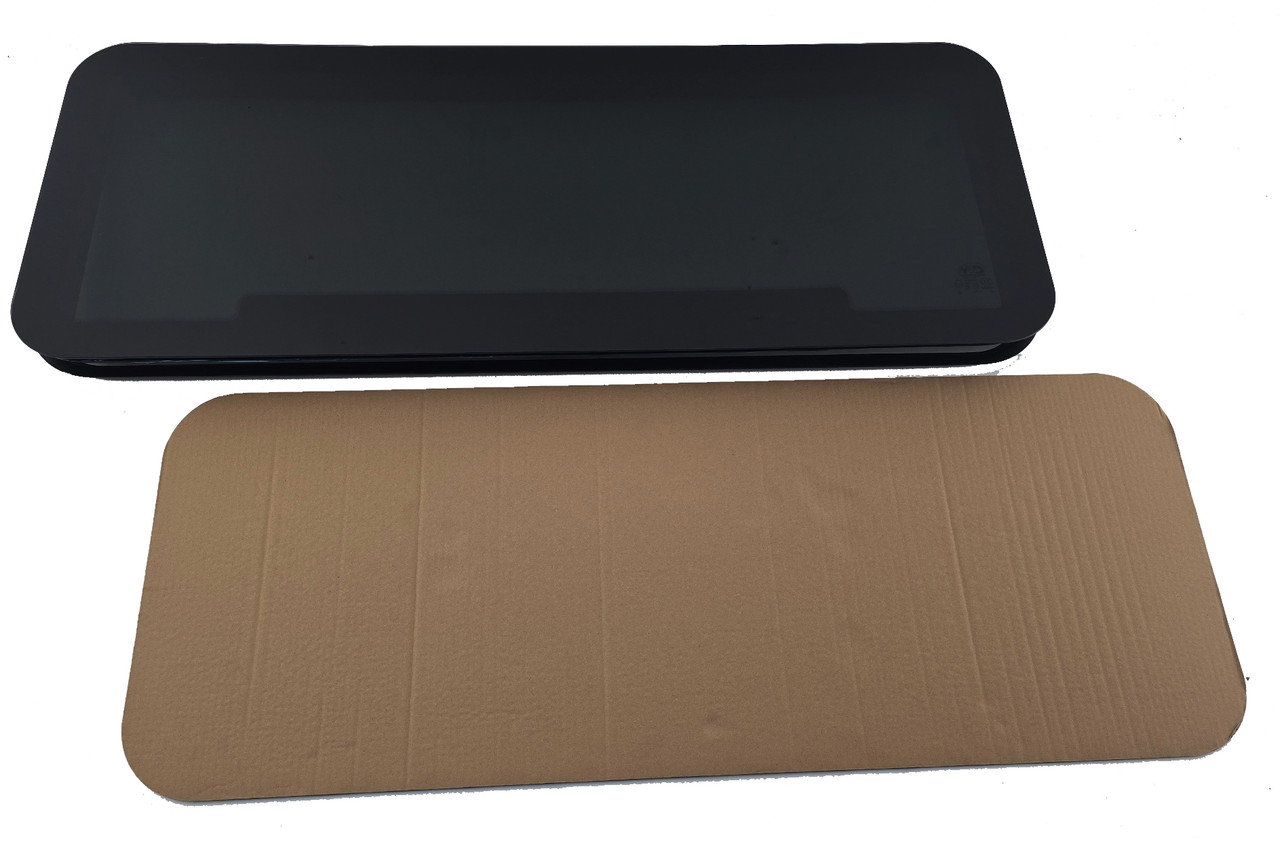

All-Glass Awning Van Bunk Window (OD 40-15/16" x 16") | VWD AG4015
Universal fit. Check measurements before ordering. Full all-glass exterior look. Awning ventilation that can be used for airflow in more conditions.
Key Features
- All-glass awning design for a cleaner exterior appearance
- Large viewable glass area for more light and visibility
- Awning tilt-out ventilation, opens 3-3/4"
- Tempered safety glass with 17% solar privacy tint
- Clamp-ring installation for a secure, rattle-resistant mount
- Removable insect screen for airflow with bug protection
- Usually ships in 5 days or less
- Warranty: 1-year limited
Fitment
- Fitment: Universal (measurements required)
- Window position: Driver side or passenger side (based on your layout)
- Common uses: bunk areas, rear sleeping platforms, sidewall ventilation zones
- Note: not recommended behind sliding doors unless sufficient clearance is provided
Technical Specifications
| SKU | AG4015 |
| Window Type | All-Glass Awning Van Bunk Window |
| Fitment | Universal Fit (Check Measurements) |
| Glass | Tempered Safety Glass with 17% Solar Tint |
| Operation | Awning (tilt-out) |
| Tilt-Out Distance | 3-3/4" |
| Installation | Clamp Ring |
| Clamp Ring Thickness | 1/8" |
| Country of Manufacture | China |
| Warranty | 1-Year Limited |
Measurements
Outside Frame Dimensions: 1040mm x 406mm (40-15/16" x 16")
Cut-Out Dimensions: 1016mm x 381mm (40" x 15")
Awning Opening Size (Approx.): 960mm x 318mm (37-3/4" x 12-1/2")
Tilt-Out Distance: 3-3/4"
Disclaimer:
Due to the flat-frame design of the All-Glass Awning Window, this model is best suited for flat-wall applications such as trailers, van extensions, or other flat-panel installations. When installed on curved factory van walls, such as those in Mercedes Sprinter or Ford Transit vans, minor panel gaps may occur due to body curvature.
For Sprinter and Transit vans, we recommend the AWN4015C Awning Van Bunk Window, which is designed to better match the vehicle body contour.
https://www.vanwindowsdirect.com/vwd-awn4015c-awning-van-bunk-window-41-1-4-x-16-3-8/
Installation
This is a clamp-ring window. Dry-fit first. Cut to the required cut-out size. Deburr and protect exposed metal edges. Set the window with the seal against the wall. Install the clamp ring evenly. Tighten fasteners in a crisscross pattern until the seal compresses uniformly. Do not overtighten.
Explore Related Categories
- Sliding Van Windows
- Awning Van Windows
- Fixed Glass Van Windows
- T-Vent Van Windows
- Universal Bunk Van Windows
- Installation Accessories
FAQ
Is AG4015 vehicle-specific?
No. AG4015 is a universal bunk window. Fitment is based on measurements. Confirm your cut-out matches the required cut-out size.
What are the measurements?
Outside frame: 1040mm x 406mm (40-15/16" x 16"). Cut-out: 1016mm x 381mm (40" x 15"). Approx awning opening: 960mm x 318mm (37-3/4" x 12-1/2"). Tilt-out distance: 3-3/4".
What tint and glass type does it use?
Tempered safety glass with 17% solar privacy tint.
How does it install?
Clamp-ring installation with 1/8" clamp ring thickness. Dry-fit first, prep the cut edge, apply the seal, then tighten evenly in a crisscross pattern for uniform compression. Do not overtighten.
Can it be installed behind a sliding door?
Not recommended behind sliding doors unless sufficient clearance is provided. Sliding door movement can contact the glass if the spacing is not correct.
