Description

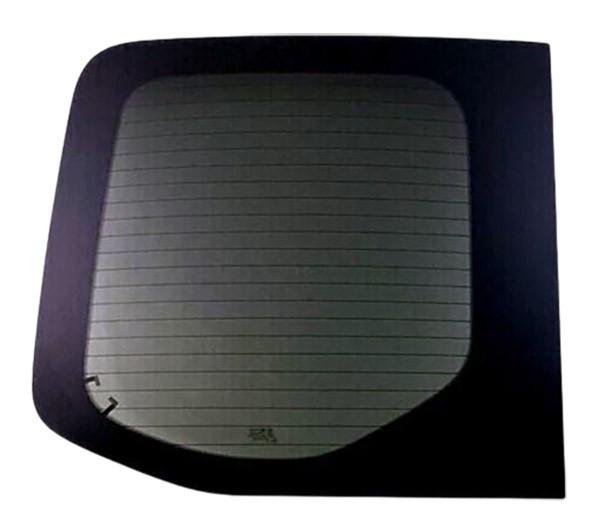

Sprinter Rear Cargo Door Heated Fixed Glass OE Style Window | IGC FB28253YPN (Driver Side)
You want rear visibility and a factory look. You also want defrost capability when your van is equipped for it. FB28253YPN is a direct-fit heated fixed glass window for the driver side rear cargo door on high roof or low roof models. Sold by Van Windows Direct. Built by IGC using solar privacy glass and OE-style geometry that follows factory stampings.
Key Features
- Direct-fit (high roof and low roof models)
- Position: driver side rear cargo door
- Built-in heater element
- Solar privacy glass
- UV rating: 12%
- Tempered safety glass (DOT/SAE)
- Urethane bonded installation
- Measurements: 777mm x 777mm (30.59" x 30.59")
- Mfg country: China
- Manufacturer warranty: 6 months
- Store warranty info on page: 30 days
Fitment
- Direct-fit: high roof and low roof models
- Window position: driver side rear cargo door
Technical Specifications
| SKU | FB28253YPN |
| Brand | IGC |
| Window Type | Solid Fixed Glass (OE Style) - Heated |
| Window Position | Driver Side Rear Cargo Door |
| Glass | Solar Privacy Glass |
| UV Rating | 12% |
| Safety | Tempered safety glass (DOT/SAE) |
| Installation | Urethane Bonded |
| Measurements | 777mm x 777mm (30.59" x 30.59") |
| Mfg Country | China |
| Manufacturer Warranty | 6 Months |
| Store Warranty Info | 30 Days |
Heated Glass Notes
The heater element is attached to the window. It is plug-and-play when replacing an existing heated factory rear door window. If your van did not come with a heated rear window, the heater will not function without the proper wiring and switch components.
Installation
This is a urethane-bonded window. Dry-fit first. Use automotive urethane adhesive and follow the urethane manufacturer's prep steps. You will need a primer base. Edge molding is recommended for the cut edge. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
FAQ
What position does FB28253YPN fit?
Driver side rear cargo door. Direct-fit for high roof and low roof models.
What are the measurements?
777 mm x 777 mm (30.59 in x 30.59 in).
Will the heater work in my van?
The heater is plug-and-play if you are replacing an existing heated factory rear door window. If your van did not come with heated rear glass, the heater will not function without the correct wiring and switch components.
What tint and UV rating does it use?
Solar privacy glass with a 12% UV rating.
How is it installed?
Urethane bonded installation using automotive glass urethane. A primer base is needed, and edge molding is recommended for the cut edge.
What warranty does it include?
Manufacturer warranty is listed as 6 months. Store warranty information on the page lists 30 days.
Vehicle Fitment Guide
Mercedes-Benz Sprinter Van
| Model | Sprinter Van |
|---|---|
| Wheelbase | 144" or 170" |
| Model Years | 2019–2026 |
| Roof Height | Low Roof or High Roof |
Designed to fit Mercedes-Benz Sprinter vans within the configurations listed above.
