Description

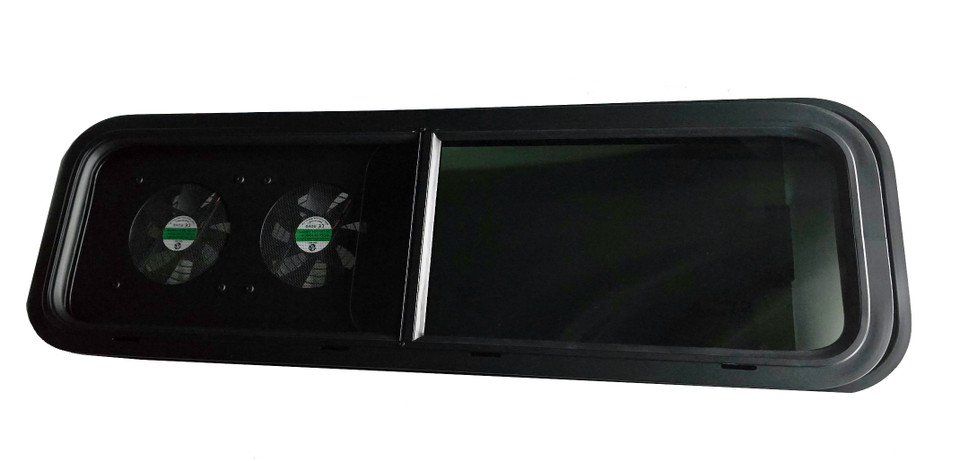

Universal Passenger Side Bunk Half Slider Window With Dual Fans | VWD VW3310RF (OD 34 x 11)
The VWD VW3310RF is a universal passenger-side half-slider bunk window with active airflow from dual 12V exhaust fans. It provides adjustable airflow via the slider and enhanced extraction via the fans — great for sleeping areas, workspaces, or pet zones. Solar privacy glass with 17% UV protection and a built-in bug screen keeps your van comfortable and clean.
Key Features
- Two 12V exhaust fans for active ventilation
- Half-slider window for adjustable airflow even with fans off
- Solar privacy glass (17% UV protection)
- Built-in bug screen
- Foam seal for weather protection
- Removable fan boxes for maintenance
- Clamp-ring installation designed for 1/8 in wall thickness
- 1 year warranty
Fitment
- Universal: installs on flat metal or fiberglass panels that meet the cutout size requirements
- Common installs: bunk/bed areas, camper builds, trailers, box trucks, RV conversions
- Position: Passenger Side (universal placement based on your layout)
Technical Specifications
| Model | VW3310RF |
| Window Type | Half Slider Bunk Window with Dual Exhaust Fans |
| Outside Frame Dimensions | 34 in x 11 in |
| Cut-Out Dimensions | 33 in x 10 in |
| Clamp Ring Size | 1/8 in |
| Slider Opening | 14 in x 7-3/4 in |
| Glass | Solar Privacy Glass (17% UV Protection) |
| Screen | Built-in bug screen |
| Fans | 12V dual-switched exhaust fans, 0.21A, 2100 RPM, 325 CFM |
| Noise | 58 dB at 12 inches |
| Installation | Clamp Ring (1/8 in wall) |
| Manufactured In | China |
| Warranty | 1 Year |
Installation
This window uses a clamp-ring install. Confirm your mounting area is flat and you have clearance behind the panel for the fan boxes and wiring. Cut the opening to size, treat bare metal edges, then set the window with the foam gasket against the exterior. Install the 1/8 in clamp ring from the inside and tighten screws evenly in a crisscross pattern until the seal compresses uniformly. Route 12V power for the dual switches and verify fan operation before final interior finishing.
FAQ
Will this fit my van?
This is a universal bunk window for flat panels. If your mounting surface is flat and you can create the required cutout size, it will fit. Always confirm clearance behind the panel before cutting.
What are the measurements?
Outside frame: 34 in x 11 in. Required cutout: 33 in x 10 in. Slider opening: 14 in x 7-3/4 in. Clamp ring size: 1/8 in.
What are the fan specs?
Dual 12V switched exhaust fans. 0.21A draw, 2100 RPM, 325 CFM airflow, and about 58 dB at 12 inches.
Can the fans be removed or replaced?
Yes. The fan boxes are removable for maintenance or replacement.
How is it installed?
Clamp-ring installation using the included foam seal and 1/8 inch clamp ring.
