Description

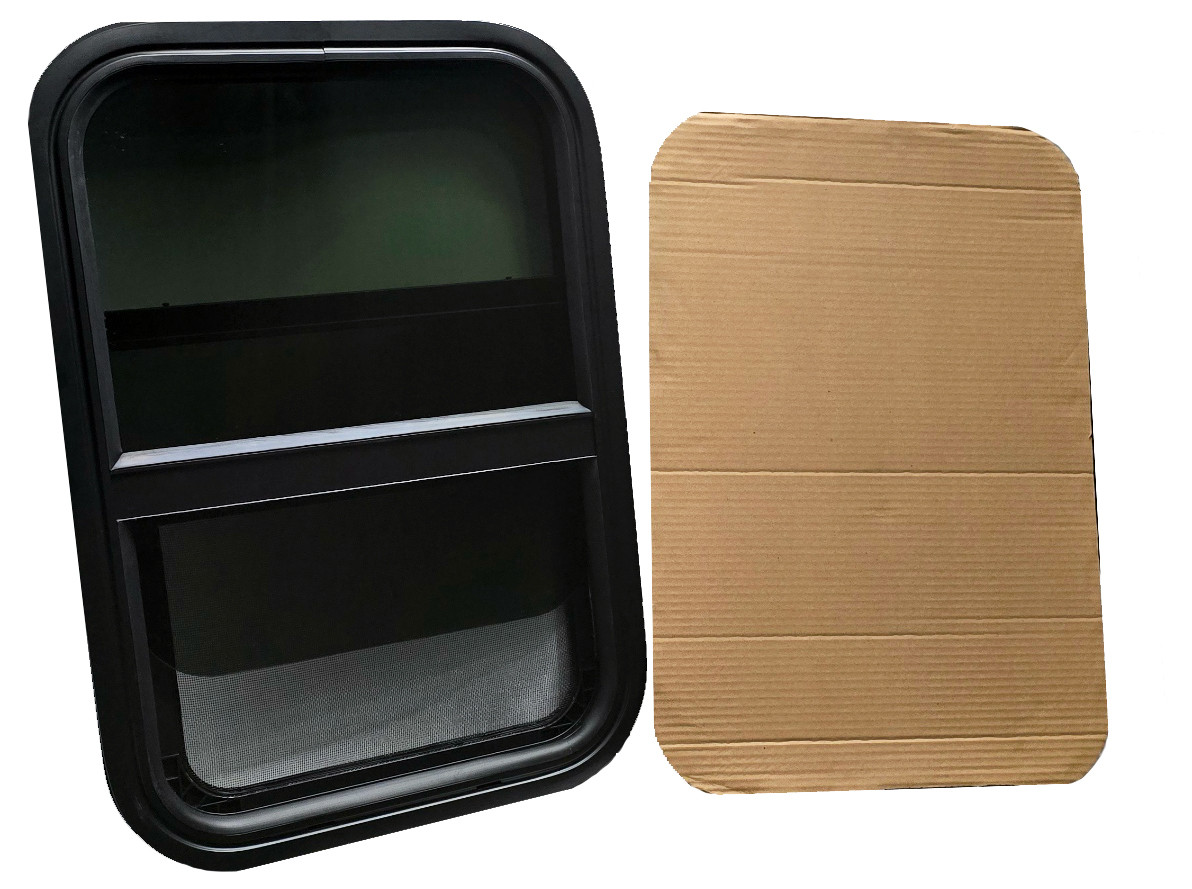

Universal Vertical Lift Slider Van Window | VWD VERT1522 (16-1/3 x 23-5/16)
Most van windows slide side to side. That works until your layout puts cabinets, beds, or storage right next to the window. The VWD VERT1522 solves that problem with an upward-opening vertical lift design. You get usable ventilation in tight wall sections, plus solar privacy glass (17% UV) and a built-in sliding bug screen. Clamp ring installation keeps the installation serviceable and DIY friendly.
Key Features
- Vertical lift slider design for tight interior layouts
- Solar privacy glass (17% UV rating)
- Integrated sliding bug screen
- Adjustable opening height with two lock positions
- Powder-coated aluminum frame
- Clamp ring installation (serviceable, DIY friendly)
- Foam seal, screw pack, and cut-out template included
- Manufactured in China
- 1-year warranty
Fitment
- Universal: installs on flat metal or fiberglass panels that meet the cutout size requirements
- Works well: behind cabinets, above counters, near beds, compact wall sections, narrow panel areas
- Typical uses: galley ventilation, bed area airflow, bathroom airflow assist, small compartment ventilation
Technical Specifications
| Model | VERT1522 |
| Window Type | Vertical Lift Slider |
| Overall Size | 415 mm x 592 mm (16-1/3 in x 23-5/16 in) |
| Cut-Out Dimensions | 381 mm x 559 mm (15 in x 22 in) |
| Slider Opening | 335 mm x 220 mm (13-3/16 in x 8-2/3 in) |
| Clamp-Ring Wall Depth | 3 mm (1/8 in) |
| Opening Lock Position 1 | 335 mm x 100 mm (13-3/16 in x 3-15/16 in) |
| Opening Lock Position 2 | 335 mm x 190 mm (13-3/16 in x 7-1/2 in) |
| Glass | Solar Privacy Glass (17% UV Rating) |
| Screen | Integrated sliding bug screen |
| Frame | Powder-coated aluminum |
| Installation | Clamp Ring Mount |
| Manufactured In | China |
| Warranty | 1 Year |
Installation
This window uses a clamp ring installation. Confirm the mounting surface is flat, and confirm interior clearance for the frame and screen track. Use the supplied template to mark the cutout. Cut the opening, treat bare metal edges, then set the window with the foam seal on the exterior. Install the clamp ring from the inside and tighten screws evenly in a crisscross pattern until the seal compresses uniformly.
FAQ
Will this fit my van?
VERT1522 is a universal window for flat panels. If your mounting surface is flat and you can make the required cutout, it will fit. Always confirm clearance behind the panel before cutting.
Why choose a vertical slider instead of a horizontal slider?
A vertical lift window is ideal for narrow spaces where interior cabinets, beds, or counters block side-to-side sliding windows. It also supports venting rising warm air in certain layouts.
What are the measurements?
Overall size: 415 mm x 592 mm (16-1/3 in x 23-5/16 in). Cutout: 381 mm x 559 mm (15 in x 22 in). Slider opening: 335 mm x 220 mm (13-3/16 in x 8-2/3 in). Clamp-ring wall depth: 3 mm (1/8 in).
Does it have multiple opening positions?
Yes. Two lock positions: Position 1 is 335 mm x 100 mm (13-3/16 in x 3-15/16 in). Position 2 is 335 mm x 190 mm (13-3/16 in x 7-1/2 in).
How is it installed?
Clamp ring installation using the included foam seal and screw pack. Follow the supplied cut-out template and tighten evenly for a uniform seal.
