Description

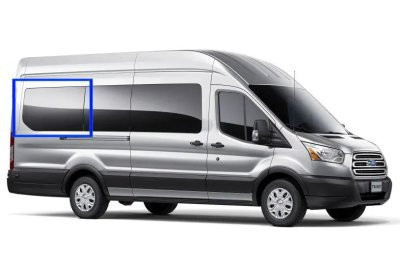

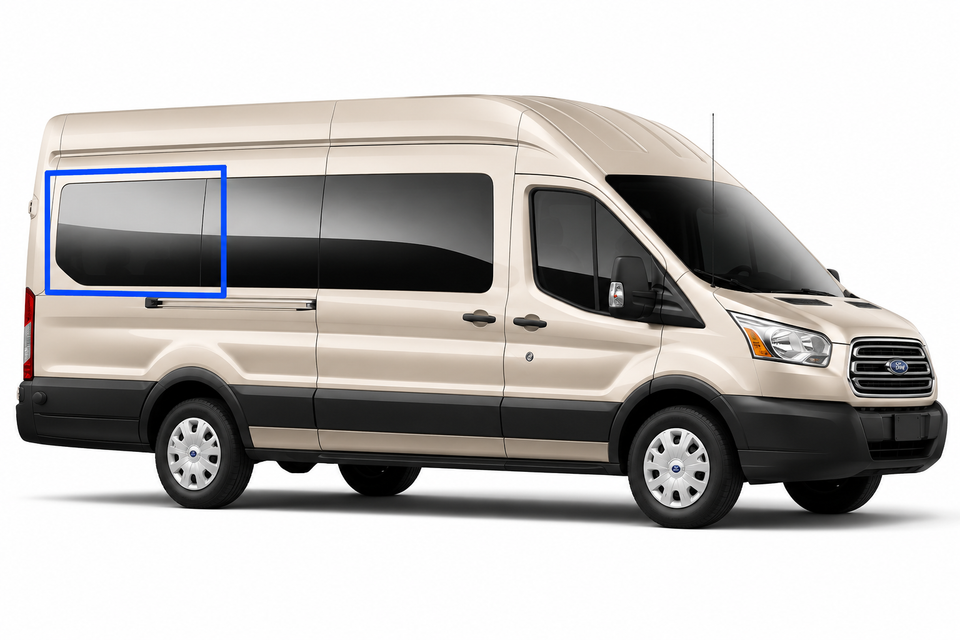

Transit Passenger Side Rear Quarter 148" Extended Fixed Glass Window | VWD TR203-F
Factory look. Solid fixed glass. Direct-fit for the Ford Transit passenger side rear quarter 148" Extended. Grey solar privacy glass for a clean exterior and strong interior visibility.
Key Features
- Solid fixed glass OE style window
- Position: passenger side rear quarter
- Grey solar privacy glass
- 17% UV filter rating helps reduce heat and UV exposure
- Tempered automotive safety glass (DOT/SAE)
- Urethane bonded installation for a sealed, factory-style finish
- Usually ships in 5 days or less
- 1 year warranty
Fitment
- Vehicle: Ford Transit Van
- Window position: Passenger Side Rear Quarter
- Model years: 2015–2026
- Wheelbase: 148" Extended
- Roof height: Medium Roof or High Roof
Technical Specifications
| SKU | TR203-F |
| Window Type | Solid Fixed Glass OE Style Van Window |
| Vehicle | Ford Transit Van |
| Window Position | Passenger Side Rear Quarter |
| Glass | Grey Solar Privacy Glass |
| UV Filter Rating | 17% |
| Safety | Tempered Automotive Safety Glass (DOT/SAE) |
| Installation | Urethane Bonded |
| Warranty | 1 Year |
Measurements
Dimensions: 1395mm x 717mm (54.92" W x 28.23" H)
Installation
This is a urethane bonded window. Dry-fit first. Prep the opening, treat the cut edge, clean, and prime per urethane specs. Set the window with automotive urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer specs.
FAQ
What vehicles and position does TR203-F fit?
Ford Transit van. Position: passenger side rear quarter. Fitment listed for 2015–2026 Transit vans with medium roof or high roof 148" extended wheelbase.
What are the measurements?
Dimensions: 1395 mm x 717 mm (54.92 in x 28.23 in).
What glass and UV rating does it use?
Grey solar privacy glass with a 17% UV filter rating.
Is the glass safety-rated?
Yes. Tempered automotive safety glass built to DOT/SAE standards.
How is it installed?
Urethane-bonded installation using automotive glass urethane. Prep, prime per urethane specs, set the glass, and support during cure.
Ford Transit Van
| Model | Transit Van |
|---|---|
| Wheelbase | 148" Extended |
| Model Years | 2015–2026 |
| Roof Height | Medium Roof or High Roof |
Compatible with Ford Transit vans within the configurations listed above.
