Description

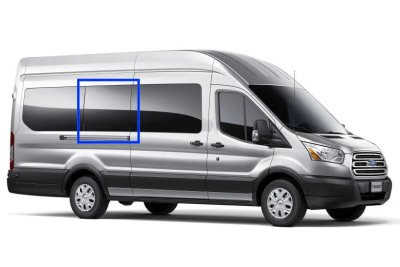

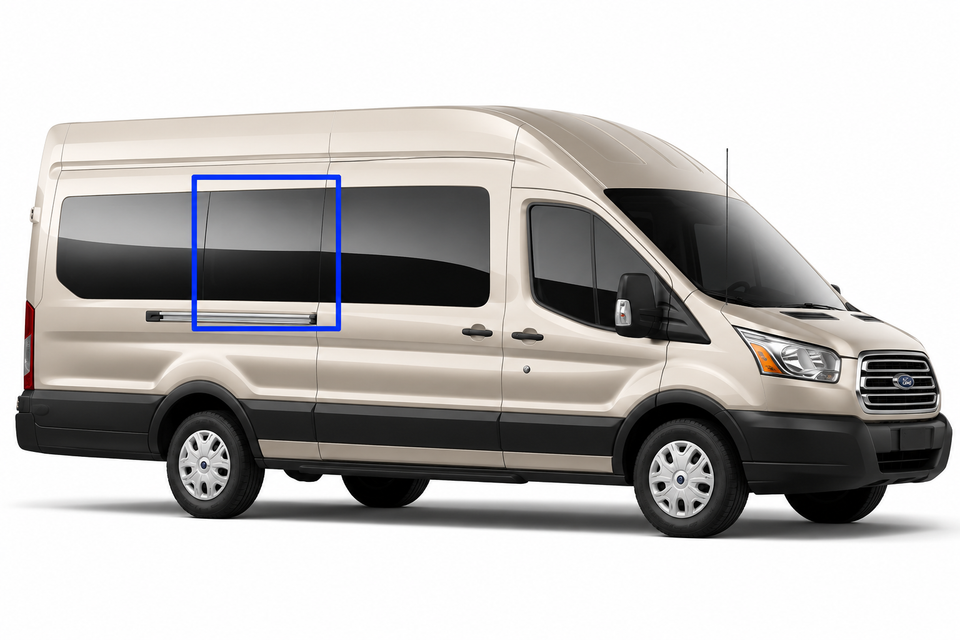

Transit Passenger Side Middle Fixed Glass Window | VWD TR202-F
Factory look. Solid fixed glass. Direct-fit for the Ford Transit passenger side middle position 148" and 148" Extended Vans. Grey solar privacy glass for a clean exterior and strong interior visibility.
Key Features
- Solid fixed glass OE-style window
- Position: passenger side middle
- Grey solar privacy glass
- 17% UV filter rating helps reduce heat and UV exposure
- Tempered automotive safety glass (DOT/SAE)
- Urethane-bonded installation for a sealed, factory-style finish
- Usually ships in 5 days or less
- 1-year warranty
Fitment
- Vehicle: Ford Transit Van
- Window position: Passenger Side Middle
- Model years: 2015–2026
- Wheelbase: 148", 148" Extended
- Roof height: Medium Roof or High Roof
Technical Specifications
| SKU | TR202-F |
| Window Type | Solid Fixed Glass OE Style Van Window |
| Vehicle | Ford Transit Van |
| Window Position | Passenger Side Middle |
| Glass | Grey Solar Privacy Glass |
| UV Filter Rating | 17% |
| Safety | Tempered Automotive Safety Glass (DOT/SAE) |
| Installation | Urethane Bonded |
| Warranty | 1 Year |
Measurements
Dimensions: 999mm x 730mm (39.33" W x 28.74" H)
Installation
This is a urethane-bonded window. Dry-fit first. Prep the opening, treat the cut edge, clean, and prime per urethane specs. Set the window with automotive urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
FAQ
What vehicles and positions does TR202-F fit?
Ford Transit van. Position: passenger side middle. Fitment listed for 2015–2026 Transit vans with medium roof or high roof and 148" or 148" extended wheelbase.
What are the measurements?
Dimensions: 999 mm x 730 mm (39.33 in x 28.74 in).
What glass and UV rating does it use?
Grey solar privacy glass with a 17% UV filter rating.
Is the glass safety-rated?
Yes. Tempered automotive safety glass built to DOT/SAE standards.
How is it installed?
Urethane-bonded installation using automotive glass urethane. Prep, prime per urethane specs, set the glass, and support during cure.
Ford Transit Van
| Model | Transit Van |
|---|---|
| Wheelbase | 148", 148" Extended |
| Model Years | 2015–2026 |
| Roof Height | Medium Roof or High Roof |
Compatible with Ford Transit vans within the configurations listed above.
