Description

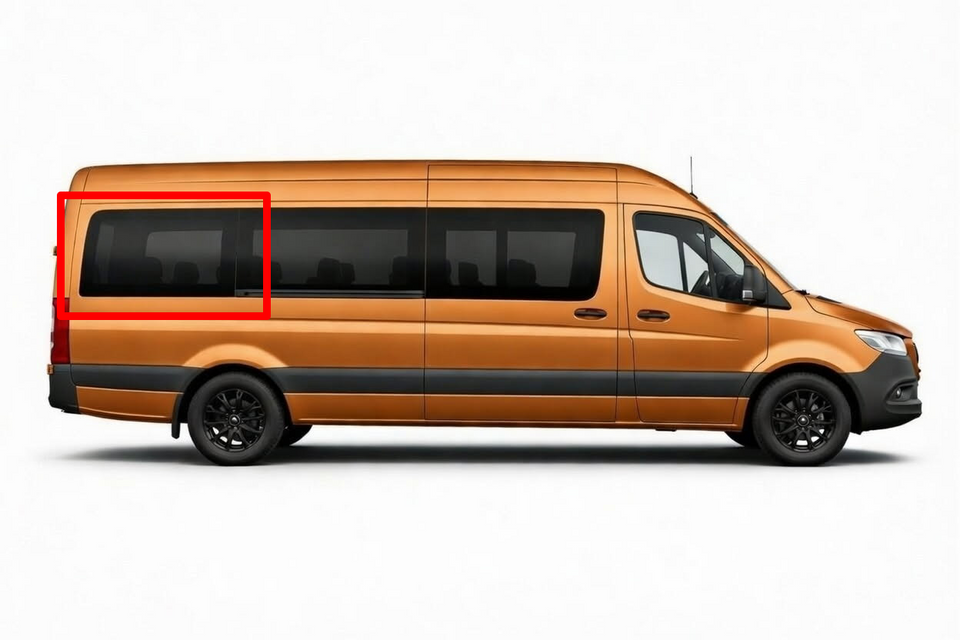

Sprinter Passenger Side Rear Quarter Fixed Glass Window (170 WB) | VWD SR103-F
Factory look. Solid fixed glass. Direct-fit for the Sprinter passenger side rear quarter on 170 wheelbase vans. Grey solar privacy glass for cleaner visibility with real privacy.
Key Features
- Solid fixed glass OE-style window
- Position: passenger side rear quarter
- Fitment: Mercedes Sprinter 170" wheelbase
- Grey solar privacy glass
- 17% UV filter rating helps reduce heat and UV exposure
- Tempered automotive safety glass (DOT/SAE)
- Urethane-bonded installation for a sealed, factory-style finish
- Usually ships in 5 days or less
- 1-year warranty
Fitment
- Vehicle: Mercedes-Benz Sprinter Van
- Window position: Passenger Side Rear Quarter
- Wheelbase: 170"
- Model years: 2007–2026
- Roof height: Low Roof or High Roof
Technical Specifications
| SKU | SR103-F |
| Window Type | Solid Fixed Glass OE Style Van Window |
| Vehicle | Mercedes-Benz Sprinter Van |
| Window Position | Passenger Side Rear Quarter |
| Wheelbase | 170" |
| Model Years | 2007–2026 |
| Roof Height | Low Roof or High Roof |
| Glass | Grey Solar Privacy Glass |
| UV Filter Rating | 17% |
| Safety | Tempered Automotive Safety Glass (DOT/SAE) |
| Installation | Urethane Bonded |
| Warranty | 1 Year |
Measurements
Measurements: 1290mm x 705mm (50.79" x 27.76")
Installation
This is a urethane-bonded window. Dry-fit first. Prep the opening, treat the cut edge, clean, and prime per urethane specs. Set the window with automotive urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
FAQ
What vehicles and positions does SR103-F fit?
Mercedes-Benz Sprinter van. Position: passenger side rear quarter. Fitment listed for 2007–2026 Sprinter vans with 170" wheelbase and low roof or high roof.
What are the measurements?
Measurements: 1290 mm x 705 mm (50.79 in x 27.76 in).
What glass and UV rating does it use?
Grey solar privacy glass with a 17% UV filter rating.
Is the glass safety-rated?
Yes. Tempered automotive safety glass built to DOT/SAE standards.
How is it installed?
Urethane-bonded installation using automotive glass urethane. Prep and prime per urethane specs, set the glass, and support during cure.
Vehicle Fitment Guide
Mercedes-Benz Sprinter Van
| Model | Sprinter Van |
|---|---|
| Wheelbase | 170" |
| Model Years | 2007–2026 |
| Roof Height | Low Roof or High Roof |
Designed to fit Mercedes-Benz Sprinter vans within the configurations listed above.
