Description

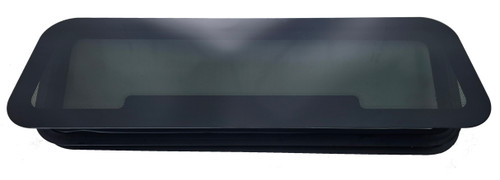

All-Glass Awning Van Bunk Window (OD 34-3/4" x 11-3/4") | VWD AG3310
Universal fit. Large, viewable, all-glass awning window design. Solar privacy-tinted tempered glass. Removable bug screen.
Key Features
- All-glass awning design for a clean exterior look
- Solar privacy-tinted tempered glass (~17% UV filter)
- Removable bug screen built-in
- Clamp-ring installation with included 1/8" clamp ring
- Large viewable glass for better light and visibility
- Usually ships in 5 days or less
- Warranty: 1 year
Fitment
- Fitment: universal (check measurements)
- Position: driver side or passenger side, based on your layout
- Common uses: camper vans, bunk areas, rear wall ventilation zones
Technical Specifications
| SKU | AG3310 |
| Window Type | All-Glass Awning Van Bunk Window |
| Fitment | Universal (Check Measurements) |
| Glass | Solar Privacy Tinted Tempered Glass (~17% UV) |
| Screen | Built-In Removable Bug Screen |
| Operation | Awning (tilt-out) |
| Installation | Clamp Ring (1/8" included) |
| Outside Frame | 883mm x 298mm (34-3/4" x 11-3/4") |
| Awning Opening | Approx 820mm x 380mm (32-1/4" x 15") |
| Internal Frame Depth | 65mm (2-9/16") |
| Warranty | 1 Year |
| Ships | Usually ships in 5 days or less |
Measurements
Outside Frame: ~883mm x 298mm (34-3/4" x 11-3/4")
Awning Opening: ~820mm x 380mm (32-1/4" x 15")
Internal Frame Depth: 65mm (2-9/16")
Disclaimer:
Due to the flat-frame design of the All-Glass Awning Window, this model is best suited for flat-wall applications, such as fiberglass bump-outs or van extensions. When installed on curved factory van walls, such as Mercedes Sprinter or Ford Transit vans, minor panel gaps may occur due to body curvature.
For Sprinter and Transit vans, we recommend the AW3310 Awning Van Bunk Window, which is designed to better match the vehicle body contour.
https://www.vanwindowsdirect.com/vwd-aw3310-awning-van-bunk-window/
Installation
Dry-fit first. Prep the cut opening and deburr sharp edges. Install the foam seal and set the window. Tighten the included 1/8" clamp ring evenly. Do not overtighten.
FAQ
Is AG3310 vehicle-specific?
No. AG3310 is a universal awning van bunk window. Verify fitment by matching your cut-out and outer frame measurements.
What are the measurements?
Outside frame: approximately 883mm x 298mm (34-3/4" x 11-3/4"). Approx awning opening: 820mm x 380mm (32-1/4" x 15").
What glass and tint does it have?
Solar privacy-tinted tempered glass with ~17% UV filter.
Does it include a screen and shade?
Yes. It includes a built-in removable bug screen, but does not include a shade. UV cover available separately.
How does it install?
Clamp-ring installation with included 1/8" clamp ring and foam seal. Dry-fit first, prep cut edges, then tighten evenly for a water-tight assembly.
