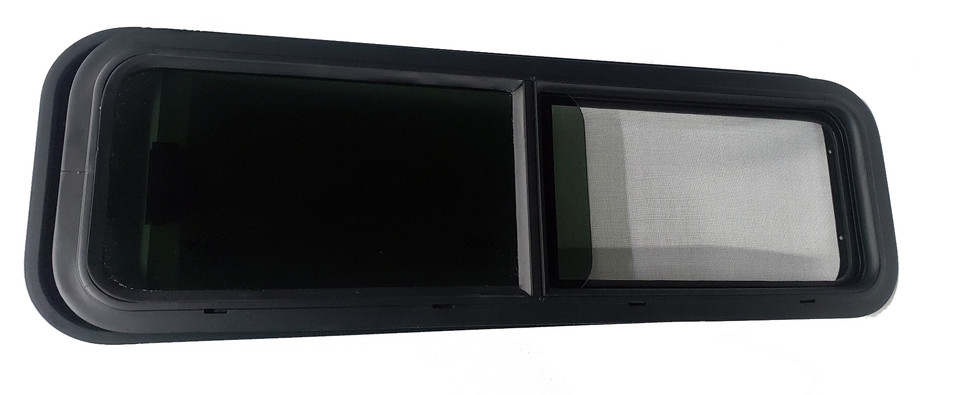

Universal Driver Side Bunk Half Slider Window | VWD VW3310L (OD 34 x 11)
The VWD VW3310L is the universal driver-side bunk half-slider that fits where most vehicle-specific windows cannot. It is a clean solution for beds, flares, and tight wall sections that still need real airflow. Solar privacy glass (17% UV) and a built-in bug screen keep your build comfortable. Clamp ring installation makes it serviceable and DIY friendly.
Key Features
- Universal driver side bunk half slider window for flat panels
- Solar privacy glass (17% UV protection)
- Built-in bug screen
- Half-slider ventilation for adjustable airflow
- Foam seal for weather protection
- Clamp ring installation designed for 1/8 in wall thickness
- Manufactured in China
- 1-year warranty
Fitment
- Universal: installs on flat metal or fiberglass panels that meet the cutout size requirements
- Common installs: bunk/bed areas, flare extensions, trailers, box trucks, RV conversions
- Position: Driver Side (universal placement based on your layout)
Technical Specifications
| Model | VW3310L |
| Window Type | Half Slider Bunk Window |
| Outside Frame Dimensions | 34 in x 11 in |
| Cut-Out Dimensions | 33 in x 10 in |
| Slider Opening | 14 in x 7-3/4 in |
| Clamp Ring Size | 1/8 in |
| Glass | Solar Privacy Glass (17% UV protection) |
| Screen | Built-in bug screen |
| Installation | Clamp Ring (1/8 in wall thickness) |
| Manufactured In | China |
| Warranty | 1 Year |
Installation
This window uses a clamp-ring installation. Confirm that your mounting area is flat and that there is clearance behind the panel for the interior clamp ring. Cut the opening to size, treat bare metal edges, then set the window with the foam gasket against the exterior. Install the 1/8 in clamp ring from the inside and tighten screws evenly in a crisscross pattern until the seal compresses uniformly.
FAQ
Will this fit my van?
This is a universal bunk window designed for flat panels. If your mounting surface is flat and you can create the required cutout size, it will fit. Always confirm clearance behind the panel before cutting.
What are the measurements?
Outside frame: 34 in x 11 in. Required cutout: 33 in x 10 in. Slider opening: 14 in x 7-3/4 in. Clamp ring size: 1/8 in.
Does it open and include a screen?
Yes. It is a half-slider window with a built-in bug screen.
What tint is used?
Solar privacy glass with 17% UV protection.
How is it installed?
Clamp-ring installation using the included foam seal and 1/8 inch clamp ring. This style sandwiches the panel for a secure fit.
