Description
Description

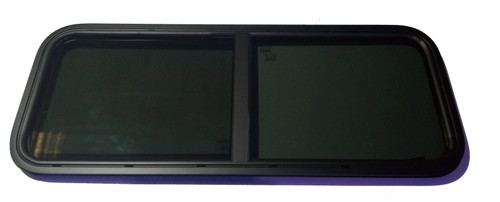

Universal Half-Slider Van Bunk Window 31-5/16" x 10-3/16" | VWD Overlander OVR3009
Universal fit. Driver or passenger side. Built for bunk areas, sleeping platforms, and tight wall sections. Measure your panel, then build your layout.
Key Features
- Universal half-slider bunk window for conversion vans and custom builds
- Installs on driver side or passenger side
- Solar privacy glass
- Half-slider vent for controlled airflow
- Integrated insect screen
- Clamp ring mounting system for a serviceable compression seal install
- Built-in drainage design (weep channels)
- When available, normally ships in 3–5 Business Days (plus carrier transit time)
- 1 year warranty
Fitment
- Universal fit (verify by measurements, not year/make/model)
- Common platforms: Sprinter, Transit, ProMaster, Express, Savana, Econoline, and custom builds
- Installs on either side of the vehicle
Technical Specifications
| SKU | OVR3009 |
|---|---|
| Series | VWD Overlander |
| Window Type | Universal Half-Slider Van Bunk Window |
| Window Position | Driver Side or Passenger Side |
| Glass | Solar privacy glass |
| Screen | Integrated insect screen |
| Installation | Clamp Ring (compression seal) |
| Warranty | 1 Year |
| Glass Thickness | 4 mm |
| UV Transmission | 17% |
Learn more about UV transmission ↗
Measurements
| Overall Size | 31-5/16" x 10-3/16" |
|---|---|
| Cutout Size | 30" x 9" |
| Vent Opening | 12-3/4" x 5-7/8" |
| Installation Type | Clamp Ring |
Installation
Clamp-ring sealing: All clamp-ring installations use the foam seals supplied with the windows. If the seal is not pre-applied, fit the supplied foam seal to the exterior frame as directed for the model. Tighten the mounting screws evenly to compress the seal uniformly.
This is a clamp ring window. Plan your location first and confirm the cutout fits between ribs and structure. Cut the opening to the listed cutout size. Set the window in the opening with the seal in place. Install the clamp ring and tighten evenly in a cross pattern until the seal compresses uniformly. Confirm operation, latch, and screen movement before final torque.
FAQ
Which side does OVR3009 fit?
It can be installed on either the driver side or passenger side. Fitment is based on measurements and having a flat metal panel area large enough for the cutout.
What are the measurements?
Overall size: 31-5/16" x 10-3/16". Cutout size: 30" x 9". Vent opening: 12-3/4" x 5-7/8".
What tint does it use?
Solar privacy glass .
How is it installed?
Clamp ring installation. The clamp ring compresses the seal evenly around the cutout for a serviceable, no-bond mount.
Does it include a screen?
Yes. It includes an integrated insect screen.
Installation & Support
Match the exact SKU, vehicle configuration and installation method before cutting. Overall glass dimensions are not a cutout template. Dry-fit the actual window and follow the model-specific instructions.
OVR3009 spec sheet & technical drawing
Overlander Half-Slider Van Bunk Window (31-5/16" x 10-3/16"). View the technical drawing below for this model.
Use the drawing to review the profile and dimensions. Confirm the exact model, position and measurements before cutting; the PDF is not a full-size cutout template.
Search all VWD van window spec sheets · Window installation guides
Product & installation videos
Watch the featured VWD video for this model.
VWD Overlander Series Half-Slider Van Bunk Window ( OVR3009 )
Search this model in the video library · Browse all videos · Spec sheets · Installation guides
