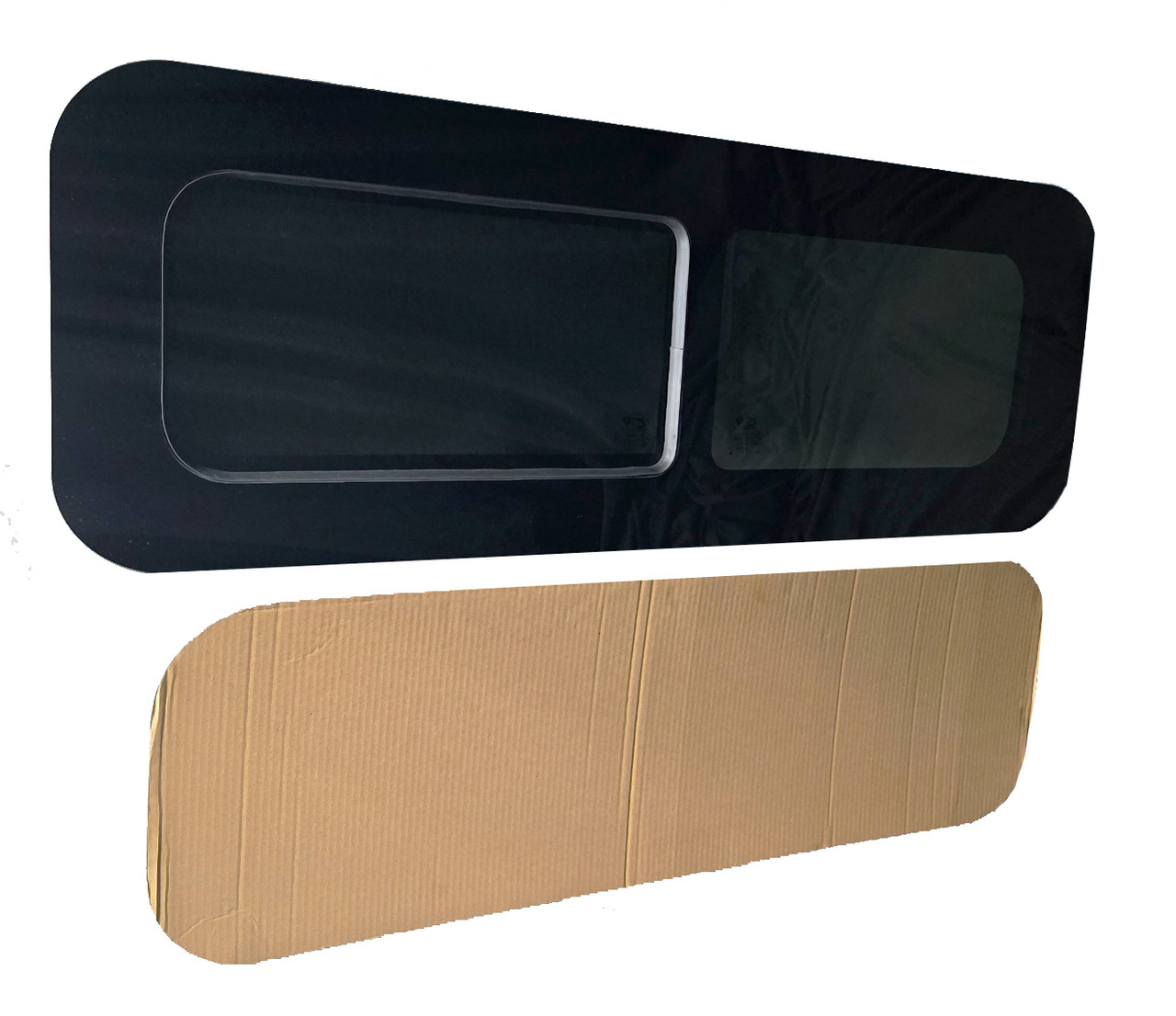

Universal Passenger Side Bunk Half Slider Window | VWD BUNK4015R SE-Series (40 x 15)
The VWD BUNK4015R is the larger bunk half-slider built for tight spaces that still need real airflow. You get more light, more ventilation, and a cleaner exterior finish without needing a vehicle-specific stamped opening. Frameless all-glass exterior styling, solar privacy glass (17% UV), and a built-in mesh screen for bug-free venting. Urethane bonded install for a sealed, factory-style finish.
Key Features
- Universal passenger side bunk half slider window for flat panels
- Frameless all-glass exterior look
- Solar privacy glass (17% UV protection)
- Built-in mesh bug screen
- Spring-loaded slam latch
- Cut-out template included
- Urethane-bonded installation
- Manufactured in China
- 1-year warranty
Fitment
- Universal: installs on flat metal panels that meet the cutout size requirements
- Common installs: bunk/bed areas, upper wall sections, cabinets, trailers, box trucks, RV conversions
- Position: Passenger Side (universal placement based on your layout)
Technical Specifications
| Model | BUNK4015R |
| Window Type | Half Slider Bunk Window |
| Bunk Window Outer Dimensions | 1016 mm x 381 mm (40 in x 15 in) |
| Bunk Window Cut-Out Dimensions | 947 mm x 315 mm (37.28 in x 12.40 in) |
| Vent Opening Size | 427 mm x 223 mm (16.81 in x 8.78 in) |
| Glass | Solar Privacy Glass (17% UV Protection) |
| Screen | Built-in mesh bug screen |
| Latch | Spring-loaded slam latch |
| Installation | Urethane Bonded |
| Manufactured In | China |
| Warranty | 1 Year |
Installation
This is a urethane-bonded window. Use the included cutout template, verify clearances behind the panel, then cut the opening. Prep the metal, dry-fit, clean, prime, and set with automotive glass urethane. Tape and support during cure. Do not drive until the urethane has cured per the urethane manufacturer's specs.
FAQ
Will this fit my van?
This is a universal bunk window for flat panels. If your flat mounting area is larger than the required cutout size, it will fit. Always verify clearance behind the panel before cutting.
What are the measurements?
Outer dimensions: 1016 mm x 381 mm (40 in x 15 in). Cutout: 947 mm x 315 mm (37.28 in x 12.40 in). Vent opening: 427 mm x 223 mm (16.81 in x 8.78 in).
Does it open and include a screen?
Yes. It is a half-slider window with a built-in mesh bug screen and a spring-loaded slam latch.
What tint is used?
Solar privacy glass with 17% UV protection.
How is it installed?
Urethane-bonded installation using automotive glass urethane.
